The E61 Group Head: How It Works and Why It Still Dominates Home Espresso

The E61 group head was designed in 1961. It has outlasted disco, dial-up internet, and at least three waves of "the death of espresso culture" predicted by the mainstream press. Sixty-four years on, it remains the most common group head design in home espresso machines. There is a reason for that, and it is not nostalgia.

What Is the E61 Group Head?

The E61 is a single-boiler, heat exchanger (HX) group head designed by Ernesto Illy — co-founder of illycaffè and one of the most consequential figures in espresso technology. The name comes from the year of its introduction: 1961. It was engineered for commercial use in high-volume environments, where reliability and temperature consistency across hundreds of daily extractions mattered more than digital precision.

The core architecture is straightforward. A single boiler holds water at brewing temperature. A heating element keeps that boiler hot. The group head itself is a large, thermally massive brass or chrome-plated brass housing attached directly to the boiler. There is no separate group head heater — the group head is heated by proximity to the boiler and by a continuous thermosiphon circulation loop that runs through it.

This is the part worth understanding, because the thermosiphon is what separates the E61 from simpler designs.

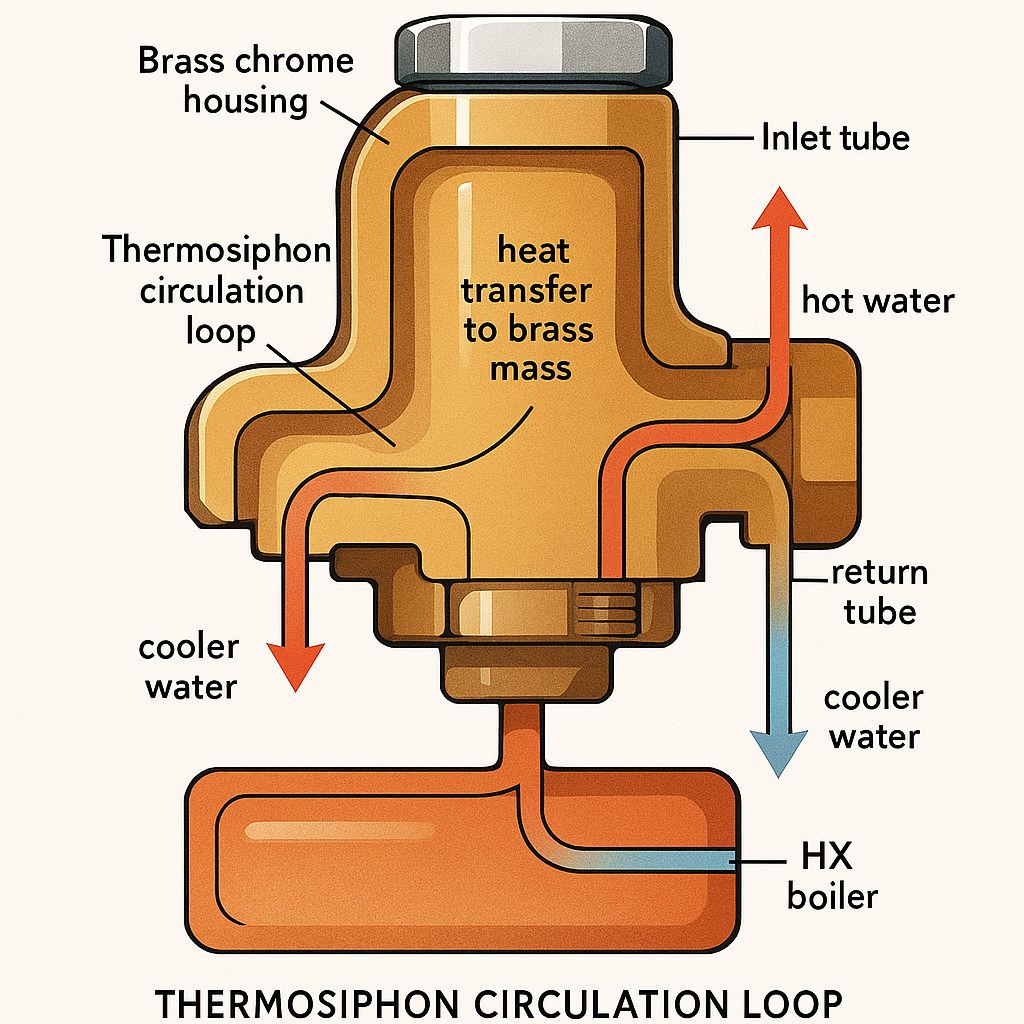

How the Thermosiphon Works

Hot water rises. Cooler water sinks. The E61 exploits this principle with a passive circulation loop that runs continuously while the machine is heated and at operating temperature.

Here is the sequence: the boiler heating element heats water. That hot water — slightly less dense than the cooler water in the group head and brew circuit — rises through a dedicated tube into the group head assembly. As it sits in the group head, it transfers heat to the mass of brass. The water then cools slightly (giving up heat to the group head) and, now denser, flows back down a return tube to the boiler. The loop runs continuously without any pump or active control.

The practical result is a group head that stays warm — not just warm in the way a PID-controlled saturated group is warm, but thermally loaded in a way that acts as a thermal buffer during extraction. The mass of the brass absorbs and re-radiates heat continuously. A shot pulled at 9 AM looks the same as one pulled at noon, not because a sensor said so, but because the group head itself has been held at temperature by the thermosiphon for hours.

This is also why the E61 requires no energy to maintain group head temperature once the boiler is up to temp. The thermosiphon is a passive system.

E61 vs. Saturated Group Heads

The main alternative to the E61 in the prosumer and home machine space is the saturated group head — a design where the group head is essentially the top of the boiler, with a dedicated heating element controlling temperature directly. Machines like the Rancilio Silvia Pro X and the Bezzera Duo DE use saturated group or direct-heat architectures.

The differences are real but nuanced:

• Temperature stability: Saturated groups offer faster, more precise temperature adjustments via PID. E61 temperature is controlled by boiler thermostat cycling — it varies within a range rather than holding at a precise setpoint. For most home baristas pulling 8–12 shots per day, this difference is negligible. For the person doing back-to-back shots at competition pace, it matters more.
• Recovery time: The E61's thermal mass actually works in its favor here. After a cooling flush (say, after steaming milk), the group head's absorbed heat helps it return to brewing temperature faster than many lightweight saturated group designs. In practice, most E61 machines recover to brew temperature within 10–20 seconds of a cooling flush.
• Maintenance: E61 machines require periodic backflushing with cleaning detergent to keep the group head and solenoid valves clear. The group head gasket — the black rubber seal between the portafilter and group — should be replaced every 6–12 months depending on use. Parts are widely available because the design has been in production for six decades.

The PID Question

A common misconception: "E61 means no PID needed." This is partially true but not absolute. E61 machines without PID controllers use a pressurestat or simple thermostat to control boiler temperature. Boiler temperature and group head temperature are related but not identical — the thermosiphon loop means the group head runs a few degrees cooler than the boiler setpoint, and that offset can drift.

Machines like the Rocket Giotto V2 and Rocket Mozzafiato add a PID controller to the equation, giving you the thermal stability of the thermosiphon design with digital temperature precision. Whether that matters depends on how sensitive your palate is and how consistent your workflow is shot to shot.

E61 Pros for Home Baristas

• Proven reliability: Sixty years of continuous production means the design is thoroughly debugged. Parts are everywhere. Any qualified technician can work on an E61 machine.
• Passive preinfusion: Because the group head and portafilter are already hot when you lock in, water begins contacting the puck gradually as pressure builds. This reduces the "chock the puck with full pressure on a cold group" problem that affects some pump-first designs.
• Wide parts and machine availability: The E61 architecture appears across dozens of brands and price points, so you have genuine flexibility in choosing a machine without committing to an obscure design.
• Thermal stability under load: The brass mass smooths out temperature fluctuations during a rowdy morning when you are pulling shots back to back.

E61 Cons and Limitations

• Temperature surfing: With non-PID E61 machines, achieving consistent brew temperature often involves a "temperature surf" — timing your shot relative to the thermostat cycle. This works, but it is not elegant.
• HX temp variance: In heat exchanger machines, the water for espresso is drawn from the boiler at full steam temperature, mixed with cooler water through a restrictor. This means brew temperature can drift slightly from shot to shot if your input water temperature or flush technique varies.
• Not ideal for light roasts: If you are pulling ultra-light Nordic roasts and chasing the tightest possible extraction temperature control, the E61's passive thermal mass and boiler-based temperature control will feel like a limitation. Saturated group heads with PID and flow control are better suited to that pursuit.
• Maintenance cadence: The group head gasket and backflush routine are ongoing maintenance items that a fully sealed single-boiler machine avoids.

Popular E61 Machines on the Market

Under $2,400 — Heat Exchanger E61

Rocket Espresso Appartamento — The Appartamento is one of the most recognizable E61 machines in the home espresso world. It uses a compact copper HX boiler, vibration pump, and the classic E61 group. The design is intentionally compact — it fits kitchens where a full-size machine would be impractical. The Appartamento does not have a PID; temperature is controlled via a pressure stat. If you are pulling medium-dark to medium roasts and you want Italian design with a small footprint, this is the starting point worth considering.

$2,000–$3,000 — E61 with PID

Bezzera Matrix — Bezzera has been making espresso machines in Brescia since 1901. The Matrix is a heat exchanger E61 machine with a PID controller that gives you direct temperature readout and adjustment at the group head. It is a significant step up in temperature precision from the Appartamento, without moving to a dual-boiler design. The build quality is industrial and functional rather than decorative — this is a machine for someone who wants performance and provenance over Instagram aesthetics.

Nuova Simonelli Musica — Made in the same region as Victoria Arduino (the Marches, central Italy), the Musica uses a copper HX boiler with an E61 group head. It is a professional-grade design adapted for home use — the boiler capacity is generous, and the machine handles back-to-back extractions well. Nuova Simonelli machines equip hundreds of commercial cafes in the US, which means parts and service support are readily available.

$3,000+ — Dual Boiler E61

Rocket Espresso R58 V2 — The R58 V2 pairs dual boiler architecture (separate brew and steam boilers) with the classic E61 group head. The PID controller manages both boilers independently. This is the configuration that serious home baristas tend to work toward: independent temperature control for brewing and steaming, no compromise between the two, and the thermosiphon stability of the E61 group. The R58 V2 is hand-assembled in Milan.

Should You Buy an E61 Machine?

The E61 is the right architecture for most people buying a home espresso machine in the $1,000–$4,000 range. Here is a decision framework that cuts through the noise:

Buy an E61 if: You want a proven design with widely available parts. You pull 5–15 shots per day. You are comfortable learning the temperature surf or adding a PID. You value thermal stability and passive preinfusion. You want genuine recovery time performance for back-to-back milk drinks.

Look at alternatives (saturated group or dual boiler without E61) if: You are pulling ultra-light roasts and need precise temperature control within 0.5°F. You want push-button convenience without temperature management. You have no interest in understanding how your machine works.

The E61 is not the most technically advanced group head available. It is the most battle-tested, most serviceable, and most honest group head in common use. For most home baristas, honest is exactly what you want.

Frequently Asked Questions

What does "E61" mean?

E61 refers to the year 1961, when designer Ernesto Illy created this group head for Faema. The design was licensed to other manufacturers and eventually became an industry standard, produced under license by dozens of companies across Italy and beyond.

Do E61 machines need a PID controller?

Not necessarily, but one helps. Without PID, you control temperature indirectly by managing the boiler thermostat cycle — a practice called temperature surfing. With PID, you have a digital readout and precise setpoint control. For most drinkers and most roasts, non-PID E61 machines pull excellent shots consistently. For precision extraction work, PID is a meaningful upgrade.

How often should I backflush an E61 machine?

Weekly backflushing with a cleaning detergent (like Cafiza) is the standard recommendation for home use. Daily purging (running water through without detergent) is good practice. If you are pulling more than 10 shots per day, consider twice-weekly backflush cycles.

How long does an E61 group head last?

The group head itself — the brass housing — is essentially permanent if maintained. The wear items are the group head gasket (6–12 months depending on use), the shower screen (annual replacement is standard), and the solenoid valve components (5–10 years depending on water quality and usage). The machine itself, with basic maintenance, will outlast most kitchen appliances.

Is the E61 group head better than a saturated group?

It depends what you are optimizing for. The E61 offers better thermal mass and passive preinfusion. Saturated groups offer faster, more precise temperature control. Neither is universally better — they represent different engineering trade-offs for different use cases. For the vast majority of home baristas, either works; the E61's parts availability and service network give it a practical edge.

Can you add flow control to an E61 machine?

Yes. Many E61 machines from Rocket Espresso and Bezzera are available with or can be retrofitted with flow control devices. Flow control lets you manually modulate water flow through the puck during extraction — useful for preinfusion control and for techniques like bloom flushing. Browse flow control espresso machines or see our full E61 collection.
