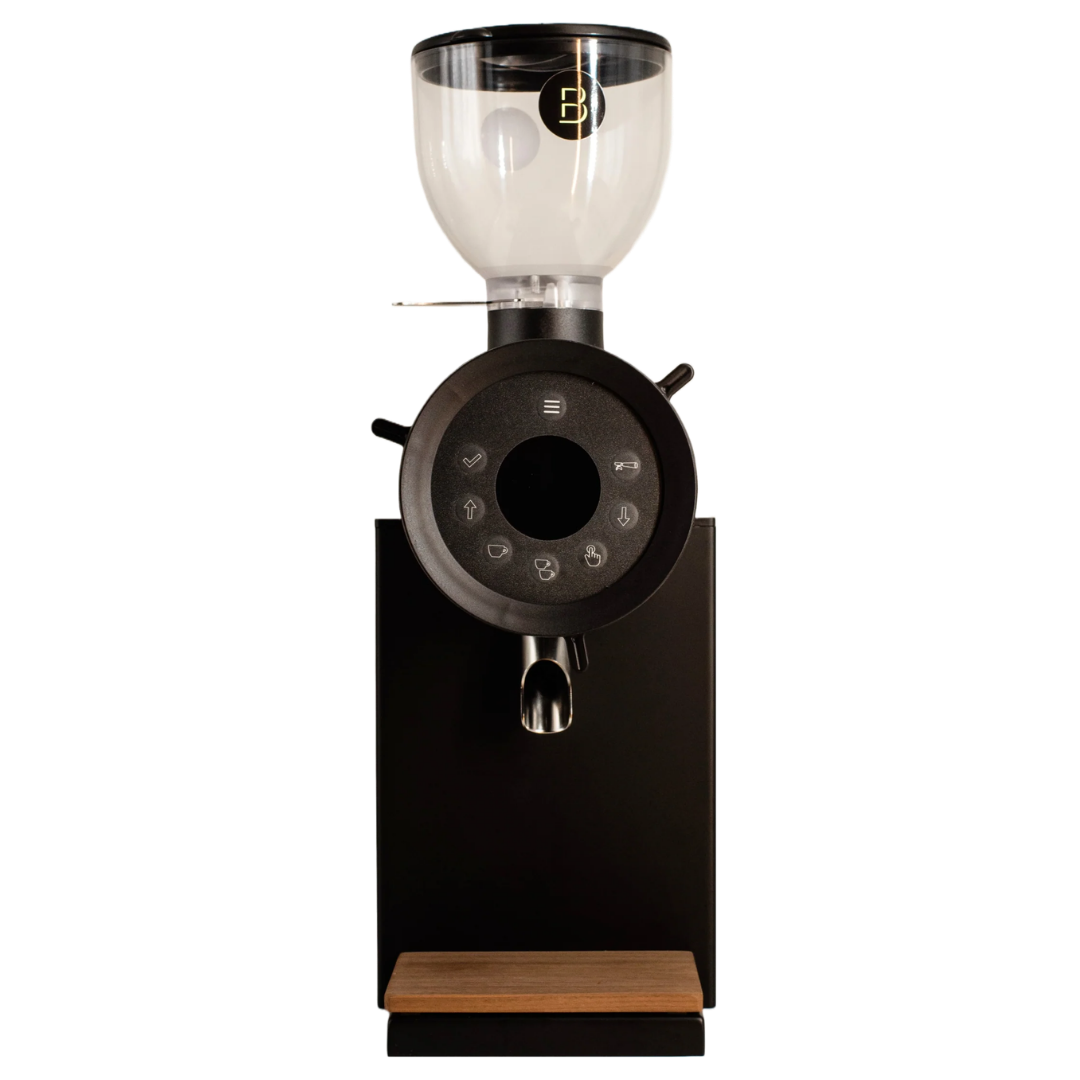

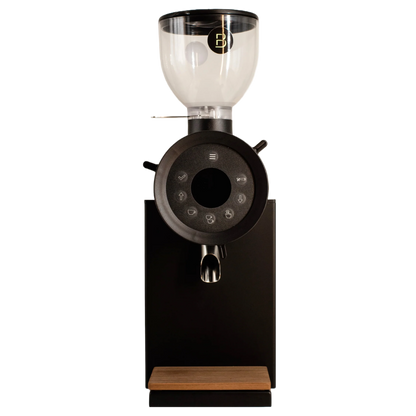

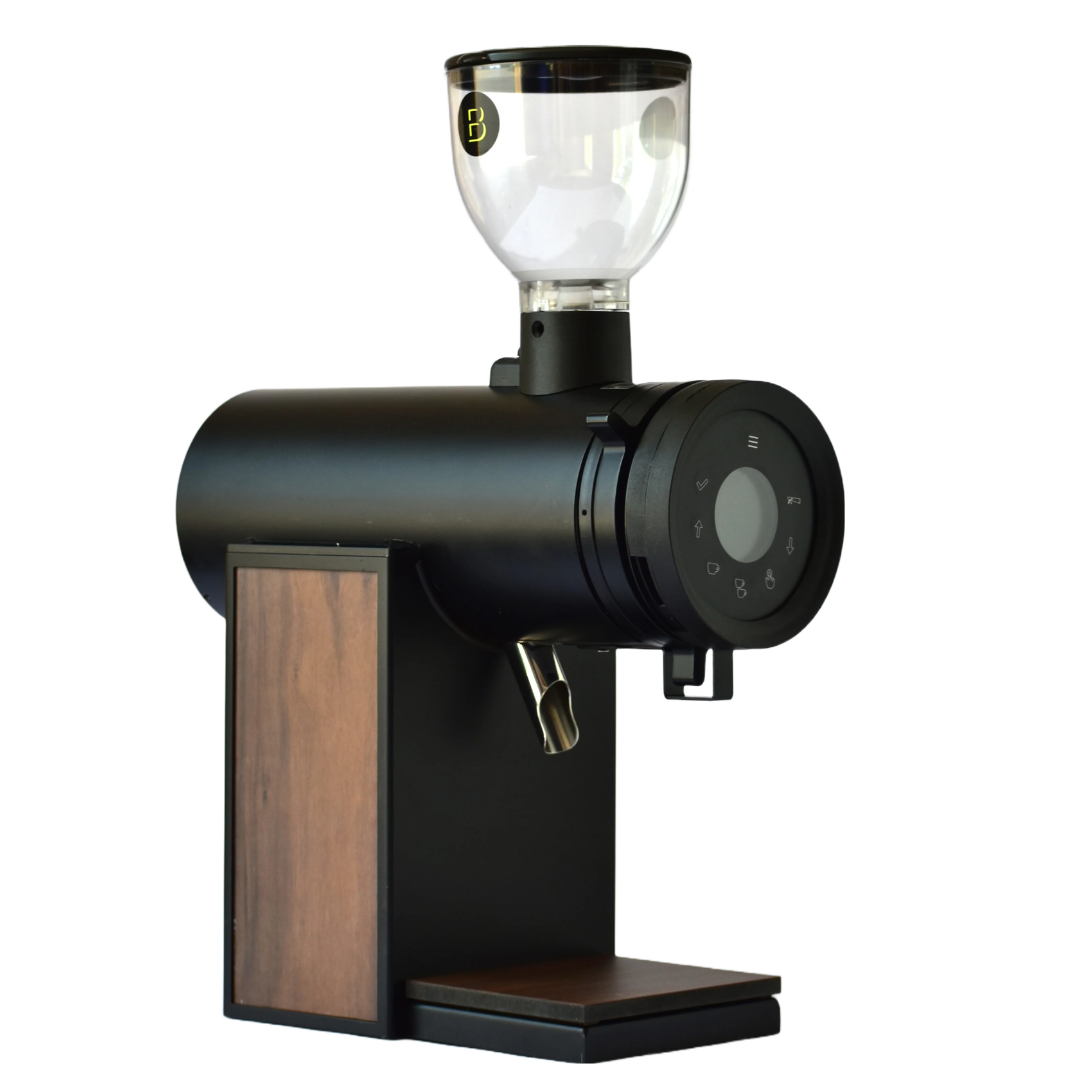

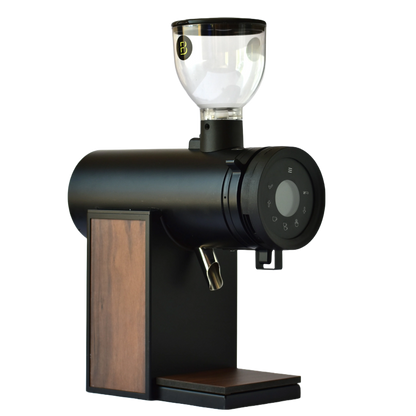

Bentwood Vertical 75 Coffee Grinder

Bentwood Vertical 75 Coffee Grinder

$ 2,650.00
$ 2,650.00
Sale Sold out
  • 75mm vertical flat burrs
  • Nearly 2x the V63's output speed
  • Same footprint, same motor as V63

  • Usually ships in 1-2 business days
  • Price Match Available
  • Warranty Included
View full details

  • Experts Since 2016

  • Authorized Dealer

  • Lifetime Support

  • Hassle Free Returns
Powering Hundreds of Businesses Including:

The Vertical 75 exists for a specific job: high-volume grinding in the same compact footprint Bentwood is known for. Its 75mm burr set moves nearly twice the coffee per second of the smaller Vertical 63, so a busy bar can keep pace with back-to-back orders without the grinder becoming the bottleneck. If your volume genuinely calls for that kind of throughput, the Vertical 75 is built for exactly that job — a distinct tool for a higher-volume counter, not a general recommendation over the rest of the Vertical line.

Product Features

Nearly 2x Output Speed

Output speed is nearly double the Vertical 63's, up to 5 grams per second in the filter range — real time saved when you're pulling shots back to back.

75mm Special Steel Burrs

75mm special steel burrs — larger than the Vertical 63's 63mm set — give you more grinding surface built specifically for higher-volume service.

V63 Footprint & Motor

Same compact footprint and motor as the Vertical 63 — the added burr capacity doesn't cost you any extra counter space or require an electrical change.

Double Ventilation System

The motor is supported by the same double ventilation system as the V63, keeping grind temperature stable even as the larger burrs move more coffee through the chamber.

Enlarged Pre-Breaker Auger

An enlarged pre-breaker auger and grinding chamber were built specifically to handle the bigger 75mm burr set cleanly, rather than just bolting larger burrs onto the V63's existing path.

Stepless, Low-Retention Design

Stepless grind adjustment, a low-retention vertical bean path, and a hands-free portafilter holder come standard, matching the rest of the Vertical line's workflow.

Brand

Bentwood

Bentwood was founded in Switzerland in 2017, taking its name from the classic chairs of European coffeehouses. The company develops precision grinders for home and commercial use, including its distinctive Vertical 63.

Manufacturing

Made in Switzerland

The Coffeeionado Take

Who's It For:

  • High-volume cafes and coffee bars whose grind speed is the bottleneck during peak rush.
  • Growing multi-barista operations that need higher throughput without buying a bigger footprint grinder for a tight counter.
  • Serious home and small-batch roastery setups that want commercial-grade 75mm burrs in a compact form factor.

It's Right For You If:

  • Grind speed is the slowest step in your workflow during a rush.
  • You want more grinding capacity but can't give up any additional counter space to get it.
  • You want the Vertical platform's stepless adjustment and low retention, plus the throughput to match a busier bar.

Things to Consider:

  • This is a niche, higher-throughput grinder — if your volume doesn't actually push the limits of a compact single-dose grinder, the Vertical 63 delivers the same grind quality without paying for capacity you don't need.
  • At just under 22 inches tall, the Vertical 75 keeps the Vertical 63's footprint but won't tuck under most standard kitchen cabinets — plan your counter space accordingly.
  • It doses by time rather than by weight — three presets (single, double, manual) instead of a built-in scale. If weight-based dosing is a must-have, the Bentwood H75 is built for that instead.

Our Take:

The Vertical 75 is a purpose-built pick for shops whose volume genuinely calls for it — the same compact footprint and motor Bentwood is known for, scaled up to a 75mm burr set for real throughput. If your bar is grinding non-stop through a rush, this is built for that specific job.

Brands Seen In

150-250 shots/day

Target Daily Volume Range

50-80 shots/hr

Target Hourly Output Range
Burr Lifespan

No

On Demand Grinder
Parts Availability: 1-2 day shipping.

Key Grinder Specifications

BURR SIZE

75 mm Flat

BURR MATERIAL

Special Steel

DOSING

Single-Dose

PROGRAMABILITY

OUTPUT SPEED

Up to 5.0 g/s (filter range)

Depending on bean roast

COOLING SYSTEM

Dual Active Fans

Warranty: 2 Year Warranty - Parts | $299+ Value

This warranty begins from the purchase date and covers parts that are defective due to manufacturer issues. Labor is not included. For international orders outside of the USA, the warranty applies only to parts and does not cover labor or any associated repair costs, nor shipping.

Duration: 24 months from date of purchase

For more information see: Warranty Policy

ORDER NOW WITH FREE SHIPPING

Why Buy from Coffeeionado

Feature Us Competitors
Free Shipping
Free
Warranty
2 Years (parts)
1 Year
Insured Shipping
Always
Lifetime Support
Extended Warranty Available

Full Product Description

Click to expand

Vertical 75 Coffee Grinder by Bentwood

Introducing the Bentwood Vertical 75 Single-Dose Coffee Grinder, Bentwood's 75mm flat-burr grinder built for shops that need real grinding capacity without giving up counter space. It shares its compact footprint and motor with the Vertical 63, but its larger burr set delivers nearly double the output speed — up to 5 grams per second in the filter grind range — for operations whose volume specifically calls for that kind of throughput.

Commercial Warranty

When investing in coffee equipment, peace of mind is worth its weight in gold. That's why we proudly offer a 2-year warranty with every coffee grinder purchase. This warranty is your guarantee against manufacturer's defects and ensures that all parts are covered for an entire year from the date of purchase. We understand that our customers deserve the very best.
Don't let uncertainty overshadow your love for freshly brewed coffee – take advantage of this limited-time offer and experience unparalleled assurance with your next coffee machine purchase.

Paid Shipping

At Coffeeionado, we understand the frustration of hidden costs when making online purchases. This is why we're thrilled to announce that we now cover all shipping, freight, and handling charges for our premium espresso machines. Gone are the days of considering additional fees as you add items to your cart.

Stepless Adjustments

With a dial on the front of the burr housing you can easily adjust between various types of grinds. This machine can easily facilitate Turkish to cold brew grinds for all different types of methods.

Stepless grinders differ from stepped grinders in that they do not have preset grind settings; instead, they feature a collar that you can rotate to adjust the grind size. This collar is usually marked with incremental lines or notches, providing a way to monitor the grind size.

75mm Flat Burrs for Higher-Volume Shops

The Vertical 75 keeps the Vertical 63's small footprint but scales up the burr set to 75mm, with an enlarged pre-breaker auger and grinding chamber to match. Nearly double the output speed of the V63 means shorter waits between drinks during a rush, without changing anything about where the grinder sits on your counter.

Uniform Grinding: Flat burrs excel in producing a more uniform particle size distribution compared to conical burrs. The design and structure of flat burr grinders facilitate precise alignment, leading to a consistent grind size. This uniformity enhances the excellence of your espresso shots and filtered coffees.

Reduced Fine Particles: In burr grinding, beans are subjected to pressure rather than being chopped, resulting in fewer fines being produced.

Cool Grinding

The machine's motor — the same motor used in the Vertical 63 — is supported by a double ventilation system to keep the grinder cool even as the larger burrs move more coffee per second.

The ventilation system is an essential component of coffee grinders, as it plays a vital role in maintaining performance and preserving coffee quality. Here's why it's important:

  1. Heat Reduction: Coffee grinding creates heat through the friction between the burrs and beans, which can negatively impact the flavor and aroma of the coffee. The dual fan system actively dissipates this heat to prevent the grounds from overheating during grinding.
  2. Consistent Extraction: Heat can affect the extraction process, causing premature release of volatile compounds from hot coffee grounds and leading to uneven extraction. The dual fan system maintains a consistent temperature to ensure balanced flavors in espresso shots.
  3. Shot Time Stability: In busy cafes, consistent shot times are crucial, but heat buildup can cause variations in grind particle size and extraction times. The dual fan cooling system minimizes these fluctuations, allowing baristas to maintain precise shot times even during peak hours.
  4. Reduced Recalibration: Grinders without proper cooling may require frequent recalibration due to temperature-induced changes in grind consistency. The dual fan system helps stabilize grind settings, reducing the need for constant adjustments.
  5. Longevity: Excessive heat can accelerate wear and tear on grinder components, but the dual fan cooling system helps maintain a lower temperature to contribute to the grinder's longevity.

Hands Free

The Vertical 75 is able to hold the portafilter while it is dosing, which allows you to easily focus on other tasks during the process. The stepless grind adjustment guides you intuitively to your perfect grind setting by showing an indication of the particle size.

Less Retention

Vertical burrs, a clean set-up, and a removable spout reduce retention to a minimum. You can single dose or work with a full hopper, save two different times, or use the barista mode to start and stop.

Designed in Switzerland, Made in Europe

Bentwood Coffee Grinders, a Swiss company, is dedicated to crafting cutting-edge coffee grinders that elevate your coffee experience. Their commitment to quality, precision, and innovation shines through in every detail of their products. These machines are produced in Germany and Italy.

Purchase Bentwood Grinders at Coffeeionado

Don't miss out on the chance to upgrade your coffee game without breaking the bank. Take advantage of our limited-time offer and get your coffee equipment shipped for free as well as receiving a 24 month warranty on your machine. Get started now and elevate your brewing experience with Coffeeionado!

Vertical 75 Features

  • Vertical 75mm flat burrs with a unique geometry, delivering excellent taste from fine to coarse at nearly double the V63's output speed
  • Same compact footprint and motor as the Vertical 63
  • Double ventilation system
  • Easy to use stepless grind adjustment
  • Near silent grinding
  • Low retention
  • Time dosing
  • Portafilter holder that works for all portafilters — can be permanently fixed or kept flexible
  • Extra durable hopper, with special closing mechanism to reduce oxidation of beans
  • Dosing funnel (58mm) delivered with every grinder
  • Cleaning brush delivered with every grinder
  • Customizing upon request

Bentwood Vertical 75 Specifications

Dimensions 8" W x 16.4" D x 21.65" H
Idle Speed 1400 rpm
Burr Diameter 75 mm
Burr Material Steel Flat
Max. Nominal Power 660 W
Net Weight ~48 Lbs
Hopper Capacity 600g
Output Speed Up to 5.0 g/s (filter range)
Portafilter Support Included

In the Box:

  • Vertical 75 grinder
  • Portafilter Support
  • Shute
  • Hopper
  • Cleaning Brush
  • Manual

The Coffeeionado Standard

At Coffeeionado, every machine we offer meets our professional standard — proven reliability, precision engineering, and long-term serviceability. Trusted by professionals since 2016.

24 Month Warranty

$199+ Value - On all commercial grinders.

Free Shipping

$69+ Value - Usually ships in 1-2 business days.

Lifetime Support

Priceless - Get support anytime after your purchase.
ORDER NOW WITH FREE SHIPPING

SPECIFICATIONS

Height
21.65 in
Depth
16.4 in
Width
8 in
Voltage
110-120V
Wattage / Power
660W
Amperage
6A
Weight
48 lb
Hopper Capacity
21.2 oz; 1.33 lb
Burr Speed
1400 RPM
Display
Digital
Grinder Adjustment
Stepless
Grind by Weight
No
Grind by Time
Yes
On Demand Grinder
No
Hertz
60 Hz
Phases
Single-phase

What We'd Tell You In Store

How to Choose a Commercial Espresso Machine

How to choose a commercial espresso machine based on real volume numbers, peak hour output, and drink mix — not vague categories.

How to Choose a Commercial Grinder

Your espresso machine gets all the attention. The grinder does all the work. Every variable that determines shot quality — particle size, extraction evenness, dose consistency — starts at the grinder.

How to Design Your Cafe: Build Your Bar for the Rush

Design your café bar for peak volume, not average traffic. Equipment layout, station design, staffing ratios, and tools that remove steps — what actually matters during the rush.

Setting Up Your Commercial Espresso Machine Right

Water pressure, electrical specs, drain slope, filter flushing — what actually goes into a commercial espresso machine setup, and what gets skipped.

Product FAQ

What's the difference between the Vertical 75 and the Vertical 63?

The Vertical 75 shares the Vertical 63's footprint, motor, and workflow, but steps up to a 75mm burr set with an enlarged pre-breaker auger and grinding chamber — delivering nearly double the V63's output speed, up to 5 g/s in the filter range, for shops whose volume actually needs it.

Is the Vertical 75 suitable for single dosing?

Yes. The vertical bean path, clean internal geometry, and removable spout keep retention low, so single dosing performs cleanly — though you can also run a full hopper if your workflow calls for it.

Can the Vertical 75 grind for both espresso and filter coffee?

Yes. The stepless adjustment dial covers the full range from Turkish to cold brew, moving cleanly between fine espresso grinds and coarser filter settings.

Is the adjustment mechanism stepless or stepped?

Stepless. A dial on the front of the burr housing gives you continuous control over grind size rather than clicking between preset steps.

Does the Vertical 75 offer grind-by-weight dosing?

No — it doses by time, with three presets (single, double, and manual), rather than weighing each dose. Low retention keeps timed dosing consistent shot to shot.

How does the Vertical 75 stay cool during heavy use?

A double ventilation system — the same dual-fan setup used on the Vertical 63 — actively cools the motor and burrs, keeping grind temperature and shot times stable even as the larger 75mm burrs move more coffee per second.

What's included in the box?

The grinder, portafilter holder, chute, hopper, cleaning brush, and manual, plus a 58mm dosing funnel with every unit.

Will the Vertical 75 fit under standard kitchen cabinets?

At just under 22 inches tall, the Vertical 75 is taller than most single-dose grinders and won't fit under standard US upper cabinets with ~18" clearance — plan your counter space accordingly.
