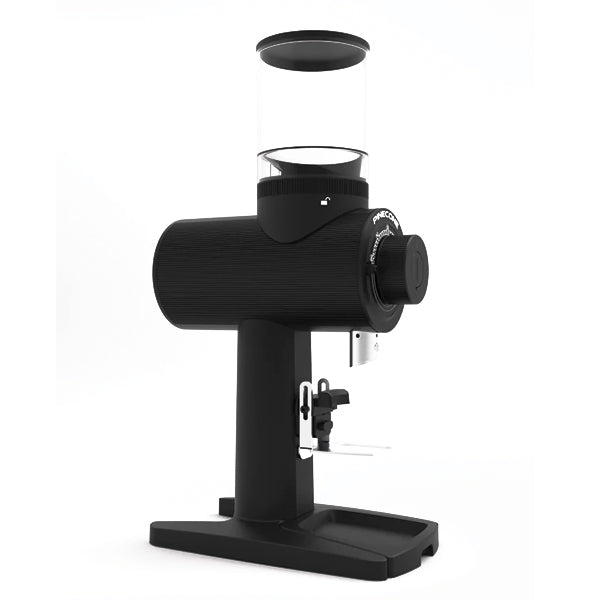

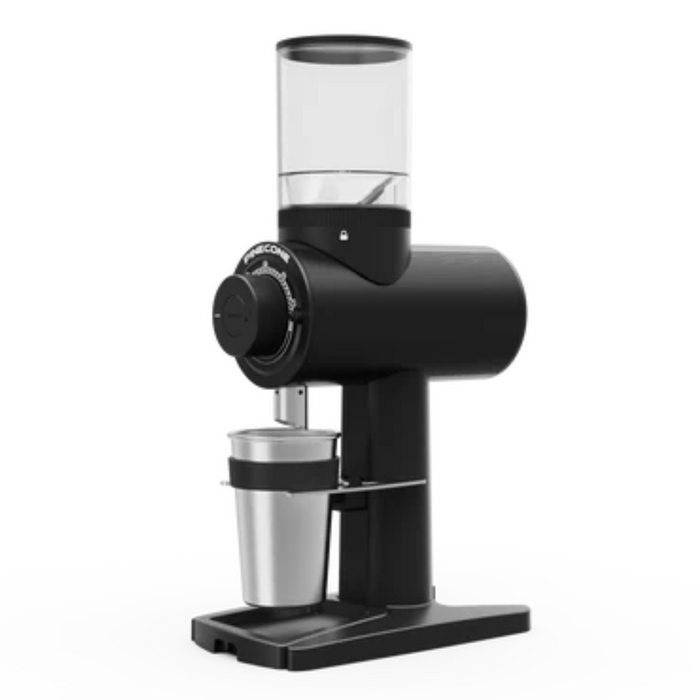

Pinecone Swiss Pinion Coffee Grinder

Pinecone Swiss Pinion Coffee Grinder

$ 595.00
$ 595.00
Sale Sold out
  • 64mm Swiss-made flat burrs
  • Stepless zero-retention grinding
  • Ultraprecise Swiss pinion gearing

  • Usually ships in 1-2 business days
  • Price Match Available
  • Warranty Included
View full details

  • Experts Since 2016

  • Authorized Dealer

  • Lifetime Support

  • Hassle Free Returns
Powering Hundreds of Businesses Including:

The Pinion is for the person who has realized that a grinder's primary job is to be reliable, not entertaining. You are building a setup that needs to transition from espresso to filter without a calibration crisis, and the 65 mm flat discs offer the clarity required when your palate has outpaced your current gear. This is a tool designed for the reality of heavy daily use, favoring a build that values longevity over planned obsolescence. It’s time to stop fighting your equipment and start using it.

Product Features

Modular Portafilter Holder

A modular front holder accommodates portafilters, so you can grind directly into the puck for cafe-style workflow and quick dose checks. The removable module also makes configuration straightforward when switching between tasks.

All-Purpose Grinding Range

The Pinion covers both espresso and filter coffee recipes, letting one machine serve every brew style in a high-end home or small café. That range simplifies workflow and reduces the need for multiple grinders when you’re dialing in recipes.

Included Dosing Cup

Pinion ships with a dosing cup to capture ground coffee cleanly and consistently, which speeds service and reduces waste during routine dialing. For prosumers, it’s a practical touch that improves repeatability and bench cleanliness.

65 mm Flat Discs

Pinion’s 65 mm flat discs, paired with its motor, deliver impressive output while maintaining particle consistency suitable for both espresso and filter. That burr size gives the throughput needed for busy periods without a bulky footprint.

Simple Grind Size Dial

A straightforward dial lets you adjust grind sizes quickly and repeatably, so dialing in a recipe is faster and less finicky. The tactile control is ideal for operators who want precision without complex menus.

Serviceable, Durable Construction

Designed with easy service access and durable materials, the Pinion reduces downtime and maintenance headaches for a small commercial or serious home setup. Simple access to components means routine servicing and parts replacement are faster and more cost-effective.

Brand

Pinecone Swiss

Manufacturing

Made in Switzerland

Certifications

  • UL

The Coffeeionado Take

Who's It For:

  • Home Espresso Enthusiasts — Single-dose workflow with zero retention and fast dial-in across multiple single origins. The 65mm flat steel burrs deliver consistency without the bulk of a commercial unit
  • Buyers Upgrading From Entry-Level Grinders — A step up in build quality and grind consistency for a dedicated home setup, without the footprint or price of a full commercial grinder
  • Precision-First Buyers — Swiss-made with the tolerances that reputation implies. If grind consistency is non-negotiable, this is where to look

It's Right For You If:

  • You want single-dose precision at home — 65mm flat steel burrs with zero retention so each dose is ground fresh, with no leftover grounds from your last bean.
  • You appreciate home-grade construction built to a high standard. 65mm flat steel burrs with the adjustability to fine-tune for different beans.

Things to Consider:

  • Notably compact for a commercial unit at 5.5kg, though it still needs a dedicated spot on your bar.
  • The 3100 RPM motor is fast, which means throughput — but also more heat generation per gram. For single-origin espresso where preserving delicate aromatics matters, lower RPM units have an edge.
  • No programmable dosing presets — you'll be manually timing or weighing each dose. Some baristas prefer this control; others find it adds a step to the workflow.

Our Take:

The Pinecone Swiss Pinion Coffee Grinder is a single-dose home grinder built for grind quality, not bar-level throughput. It's a strong choice if you want commercial-grade burrs and Swiss precision in a unit sized and priced for home use.

Brands Seen In

Key Grinder Specifications

BURR SIZE

65 mm Flat

BURR MATERIAL

Steel

DOSING

On-Demand

PROGRAMABILITY

2 – Single, Double

OUTPUT SPEED

5-6 g/s

Depending on bean roast

COOLING SYSTEM

Passive

Warranty: 2 Year Warranty - Parts | $99+ Value

This warranty begins from the purchase date and covers parts that are defective due to manufacturer issues. Labor is not included. For international orders outside of the USA, the warranty applies only to parts and does not cover labor or any associated repair costs, nor shipping.

Duration: 24 months from date of purchase

For more information see: Warranty Policy

ORDER NOW WITH FREE SHIPPING

Why Buy from Coffeeionado

Feature Us Competitors
Free Shipping
Free
Warranty
12 Months (parts)
1 Year
Insured Shipping
Always
Lifetime Support
Extended Warranty Available

Full Product Description

Click to expand

The Pinion Grinder is the ultimate choice for professionals who demand versatility, precision, and consistency. Whether you're brewing espresso or filter coffee, the Pinion delivers outstanding results across all recipes. Designed with a modular front holder, it easily accommodates portafilters and comes with a convenient dosing cup, allowing you to grind easily and precisely.

What sets the Pinion apart is its powerful motor paired with 65 mm flat burrs, which deliver an impressive output while maintaining impressively low noise levels—ideal for both busy cafés and home setups. Its compact design doesn’t compromise on performance, and its durable materials ensure longevity and reliability, making it a long-term investment.

Plus, with its simple dial to adjust grind sizes and easy service access, the Pinion is as user-friendly as it is robust. Experience the unbeatable combination of value, versatility, and quality with the Pinion grinder—perfect for professionals who settle for nothing less than the best.

Technical Data

Model

Pinion
Voltage/Frequency 120V, 60 Hz, 510 W, 4.7 A
230V, 50 Hz, 450 W, 2.1 A
Grinding Output 5-6 g/sec.
Measured at ca. 250 μm. Output varies according to bean type, roast degree and selected degree of fineness.
Motor Idle Speed
  • 120V, 60 Hz
  • 230V, 50 Hz


3.100 rpm
3.100 rpm

Max. Permitted Operating Cycle

  • 120V, 60 Hz
  • 230V, 50 Hz



15 sec. ON / 45 sec. OFF
15 sec. ON / 45 sec. OFF

Recommended Pause

45 seconds

Max. Daily Output

30 kg per day

Max. Bean Hopper Filling Quantity

600 grams

Dimensions (W x H x D)

150 x 245 x 450 mm

Packaging Dimensions (W x H x D)

400 x 350 x 200 mm

Weight

6 kg / 5.5 kg (net)



Purchase your Pinecone Swiss today!

The Coffeeionado Standard

At Coffeeionado, every machine we offer meets our professional standard — proven reliability, precision engineering, and long-term serviceability. Trusted by professionals since 2016.

12 Month Warranty

$99+ Value - On all grinders & equipment.

Free Shipping

$49+ Value - Usually ships in 1-2 business days.

Lifetime Support

Priceless - Get support anytime after your purchase.
ORDER NOW WITH FREE SHIPPING

SPECIFICATIONS

Height
9.65 in
Depth
17.72 in
Width
5.91 in
Voltage
110-120V
Wattage / Power
510W
Amperage
5A
Weight
12 lb
Hopper Capacity
20 oz; 1.3 lb
Burr Speed
3100 RPM
Grinder Adjustment
Stepless
On Demand Grinder
Yes
Hertz
60 Hz
Phases
Single-phase

Resources

Brochure Guide

Product Manual

What We'd Tell You In Store

How to Choose a Commercial Espresso Machine

How to choose a commercial espresso machine based on real volume numbers, peak hour output, and drink mix — not vague categories.

How to Choose a Commercial Grinder

Your espresso machine gets all the attention. The grinder does all the work. Every variable that determines shot quality — particle size, extraction evenness, dose consistency — starts at the grinder.

How to Design Your Cafe: Build Your Bar for the Rush

Design your café bar for peak volume, not average traffic. Equipment layout, station design, staffing ratios, and tools that remove steps — what actually matters during the rush.

Setting Up Your Commercial Espresso Machine Right

Water pressure, electrical specs, drain slope, filter flushing — what actually goes into a commercial espresso machine setup, and what gets skipped.

Product FAQ

What type and size of burrs does the Pinecone Swiss Pinion Coffee Grinder use, and are they suitable for espresso?

The Pinecone Swiss Pinion uses flat, Swiss‑engineered burrs specifically optimized for espresso grinding. The burrs are designed to produce a consistent, fine grind with a narrow particle size distribution, which helps with even extraction and better shot consistency. Burr size is large enough to support both single‑household use and moderate service environments like busy home bars and small specialty cafés.

How often do I need to replace the burrs, and how long will they typically last?

Burr life depends on usage, roast level, and how well the grinder is maintained. Under typical home espresso use (2–6 shots per day), the burrs can easily last several years before you notice a decline in grind consistency. In a light commercial setting with higher volume, they may need replacement sooner. As a general guide, many users replace espresso burrs somewhere around 800–1,200 kg of coffee. Regular cleaning and avoiding stones or very oily beans will help maximize burr life.

Is the Pinecone Swiss Pinion grinder stepless, and how precise is the grind adjustment for dialing in espresso?

Yes, the Pinecone Swiss Pinion features stepless grind adjustment. This means you are not limited to preset click positions and can make very fine incremental changes to dial in your espresso precisely. The adjustment mechanism is designed to be repeatable and stable, so once you find a setting that works for your beans and machine, it will stay consistent shot to shot.

Can this grinder handle both espresso and filter coffee, or is it mainly for espresso?

The grinder is optimized for espresso, with a focus on fine grind consistency and micro‑adjustment. It can be adjusted coarser for methods like moka pot and some filter brews, but its strength is in the espresso range. If you mainly brew espresso and occasionally use other methods, it can work as an all‑rounder; if you primarily brew filter coffee, a dedicated filter‑oriented grinder may be a better primary option.

Is the Pinecone Swiss Pinion grinder suitable for home use, small cafés, or larger restaurant settings?

The Pinecone Swiss Pinion is best suited for serious home baristas and small, quality‑focused operations such as low‑volume cafés, coffee carts, and tasting bars. It is built for consistent, repeatable espresso grinding and can comfortably keep up with a steady flow of drinks. For very high‑volume environments with continuous back‑to‑back orders, a heavy‑duty high‑throughput grinder may be more appropriate.

Is the grinder compatible with standard kitchen counters, and will it fit under most cabinets?

The grinder’s footprint is compact and designed with home counters in mind. Its overall height is low enough to fit under most standard U.S. kitchen cabinets, and the depth is suitable for typical countertop overhangs. If you have particularly low cabinets or a built‑in shelf, checking your available height against the grinder’s published dimensions is recommended before purchase.

Does the Pinecone Swiss Pinion offer hands‑free operation and dosing options (timed or manual)?

It is a manual, on-demand grinder without programmable timed dosing — you control the dose by hand for full control over each grind.

How fast is the grinder, and can it keep up with making multiple espresso drinks in a row?

The Pinecone Swiss Pinion provides a fast enough grind time for typical double‑shot doses while prioritizing grind quality and low retention. It can comfortably handle multiple back‑to‑back drinks, making it suitable for busy home mornings or small service environments. Actual grind time per dose will vary depending on your chosen grind size and dose weight, but it’s designed to avoid bottlenecking drink preparation.
