Victoria Arduino

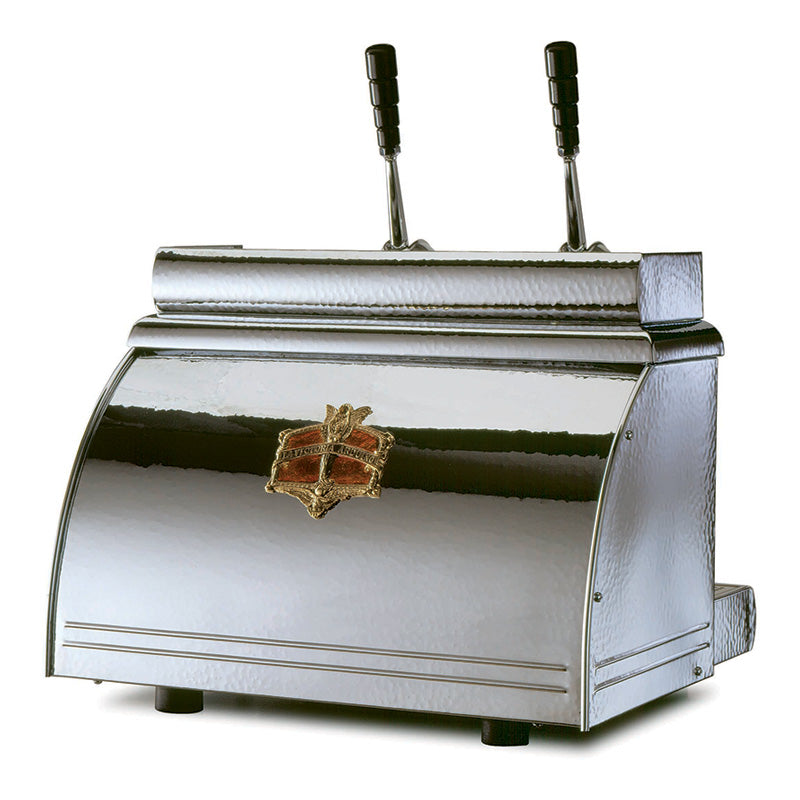

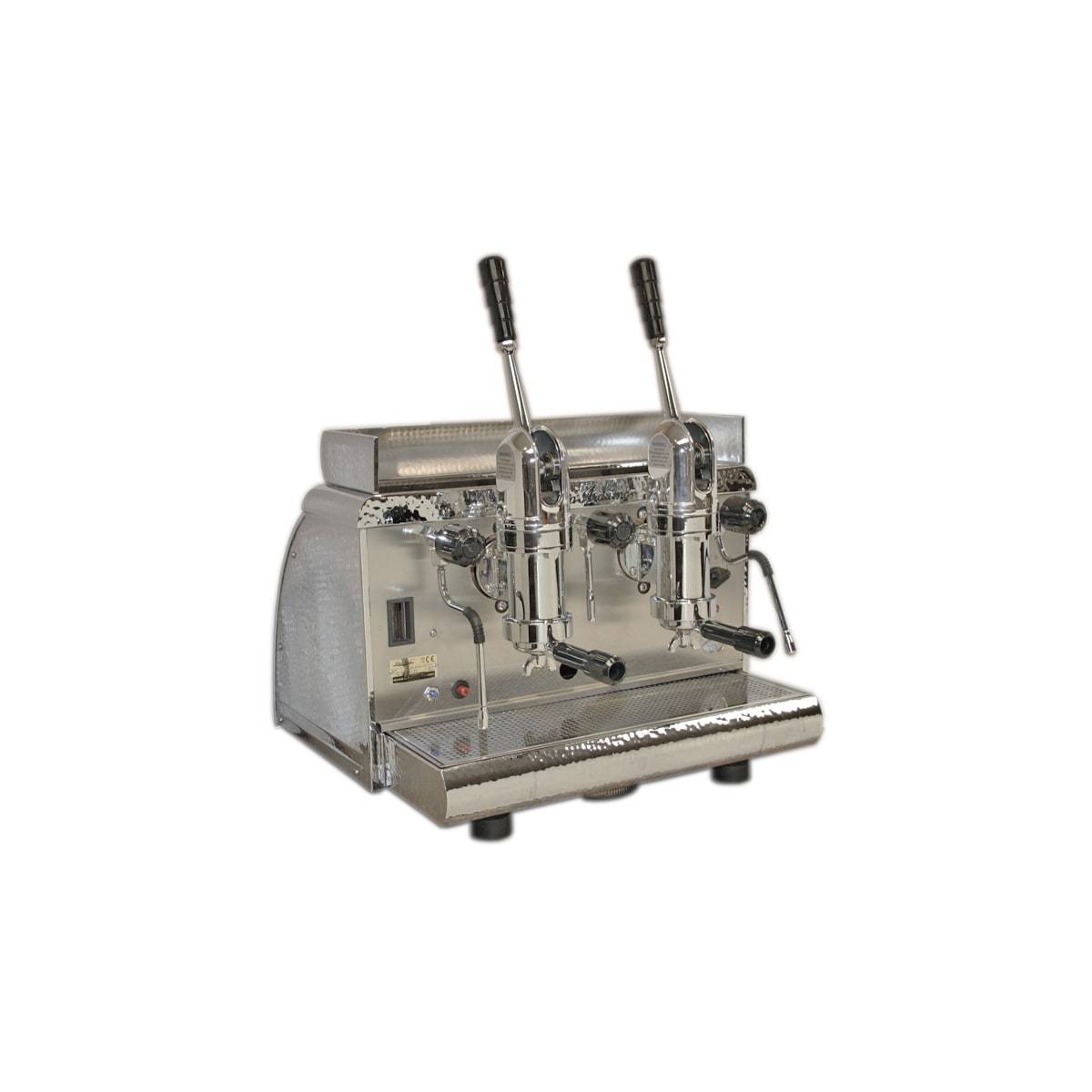

Victoria Arduino Athena Leva

Victoria Arduino Athena Leva

Regular price $ 12,825.00
Regular price Sale price $ 12,825.00
Sale Sold out
  • Manual lever extraction
  • Stable brew temperature
  • Commercial stainless build

  • Usually ships in 1-2 business days
  • Price Match Available
  • Warranty Included
View full details
  • Experts Since 2016

  • Authorized Dealer

  • Lifetime Support

  • Free Professional Setup

Powering Hundreds of Businesses Including:

Installing a lever machine is a public declaration that you trust your baristas more than a circuit board. The Athena Leva rejects the industry’s pivot toward hidden automation, requiring a tactile commitment to manual dosing control that defines the tempo of a serious espresso bar. It functions as a visual anchor for a program that values the physics of the pull over the convenience of a button. This is for the operator who wants the work to be visible from the other side of the counter.

Product Features

Cool Touch Wands

“Cool Touch Wands” let baristas steam milk repeatedly with reduced waiting time and safer handling between drinks. That keeps workflows moving during high-volume shifts and lowers the risk of accidental burns on the steam arm.

Manual Dosing Control

Manual Dosing puts shot volume and timing under the barista’s hands for on-the-fly adjustments during busy service. Listed as “Manual Dosing,” it’s built for demanding professionals and medium-volume locations where quick dialing-in and operator control matter.

Surface LEDs

The machine features “Surface LEDs” that improve visibility of controls and status at the group head during peak service. Clear surface lighting helps baristas read settings and cues quickly in a crowded espresso line.

Reverse Mirror

“Reverse Mirror” gives improved sightlines to the group heads and cup area so operators can monitor extraction and cup placement without breaking flow. It’s a simple design detail that speeds service and reduces mis-pours in a busy bar.

Bar Pump Gauge

The built-in “Bar Pump Gauge” provides on-machine pump pressure readout so technicians and baristas can verify extraction pressure at a glance. Easy pressure monitoring supports consistent shots and faster troubleshooting on site.

Boiler Capacity & Power Options

Two configurations match output and electrical needs: the 2G lists a Boiler Size of 15.2 lt with 220v / 3000W (Amp Draw 21, Power Input Nema 6-20), while the 3G lists a Boiler Size of 22.8 lt with 220v / 5000W (Amp Draw 23, Power Input Nema 6-30). Those specific boiler and power specs let buyers plan for service volume and installation requirements.

The Coffeeionado Take

Who's It For:

  • Experienced baristas and lever enthusiasts — manual dosing puts full control of shot timing and volume in the barista's hands.
  • Cafes that want the extraction process on display — the reverse mirror and surface LEDs turn the pull into something customers can watch.
  • Medium-volume shops (up to ~250 cups/day) — the 15.2L heat exchanger boiler is sized for steady service rather than extreme peak volume.

Right For You If:

The Athena Leva is for cafes and baristas who want the visible craft of lever extraction on a commercial-capable machine. Manual dosing puts shot timing and volume in the barista's hands, and the heat exchanger boiler is sized for steady, medium-volume service — up to roughly 250 cups a day.

Things to Consider:

Lever machines take more training than an automated group head — pressure and pre-infusion timing follow the barista's technique rather than a program. On most current US configurations, the steam wands are not fully cool-touch, so handle them by the grips provided.

Our Take:

The Athena Leva is for a shop that wants its espresso bar to feel like craft, not just output. It rewards a skilled barista and makes the pull part of the customer experience.

Brand

Victoria Arduino

Victoria Arduino was founded in 1905 by Pier Teresio Arduino, who drew inspiration from the speed and power of steam locomotives. The Italian brand is now known for premium espresso machines and grinders that combine design with advanced brewing technology.

Usage

Manufacturing

Made in Italy

Certifications

  • ETL, NSF, UL

Brands Seen In

200-400 drinks/day

Target Daily Volume Range for Sustained Use
50% milk based menu

60-100 shots/hr

Target Hourly Output Range

1-2 Baristas

Workflow Set Up

Parts Availablity

1-2 day shipping.
Easy

Your complete buyer's report. In your inbox.

A Coffeeionado Intelligence Report built specifically for this machine. Break-even timeline, maintenance schedule, real resale data, and market feedback. The kind of document you'd expect to pay a consultant for. Enter your email and it's yours.


Key Specifications

BOILER TYPE

Single Boiler

WATER SOURCE

Direct-Plumbed

No reservoir

PUMP TYPE

Manual Lever

User-controlled, silent operation

PORTAFILTER

58 mm

OUTPUT

Medium Volume

PRE-INFUSION

Mechanical

Warranty: 2 Year Warranty - 2 Parts & 1 Labor | $299+ Value

This warranty begins from the purchase date and covers parts that are defective due to manufacturer issues. Labor will be included for the 1st year. For international orders outside of the USA, the warranty applies only to parts and does not cover labor or any associated repair costs.

Parts Duration: 24 months from date of purchase
Labor Duration: 12 months from date of purchase

For more information see: Warranty Policy

Why Buy from Coffeeionado

Feature Us Competitors
Free Shipping
Free (Next Day)
Free Installation (220V Machines)
Minimum Commercial Warranty
2 Years (parts)
1 Year
Insured Shipping
Always
Lifetime Support
Extended Warranty Available

Full Product Description

Click to expand

Athena Leva Lever Espresso Machine by Victoria Arduino

Athena Leva is the espresso machine beloved by espresso professionals who want the visible craft of manual extraction. Its lever dispensing system rewards a skilled barista with a very high level of personalization in every drink — and puts that skill on display for the customer watching from the other side of the counter.

Manual Dosing

A single button begins and ends the brewing process, but the lever itself puts shot volume and timing under the barista's hands for on-the-fly adjustments during busy service. Built for demanding professionals and medium-volume locations where quick dialing-in and operator control matter.

Cool Touch Wands

This technology significantly reduces the temperature of the wands during the steaming process, letting baristas steam milk repeatedly with reduced waiting time and safer handling between drinks.

Surface LEDs

Strategically located around the machine, the surface LEDs improve visibility of controls and status at the group head during peak service — helping baristas read settings and cues quickly in a crowded espresso line.

Reverse Mirror

The back-plate is designed to act as a mirror, allowing the barista to monitor the brewing process and cup placement without breaking flow or bending down.

Bar Pump Gauge

A built-in pump gauge provides an on-machine pressure readout, making it easier to check pressure profiles and troubleshoot on site.

Commercial Warranty

When investing in coffee equipment, peace of mind is worth its weight in gold. This commercial 2 year warranty is your guarantee against manufacturer's defects.

Don't let uncertainty overshadow your love for freshly brewed coffee – take advantage of this limited-time offer and experience unparalleled assurance with your next coffee machine purchase.

Paid Shipping

At Coffeeionado, we understand the frustration of hidden costs when making online purchases. This is why we're thrilled to announce that we now cover all shipping, freight, and handling charges for our premium coffee equipment within the continental USA — and installation is included with your Athena Leva. Gone are the days of considering additional fees as you add items to your cart.

The Brand: Victoria Arduino

Founded in Turin, Italy, in 1905 by Pier Teresio Arduino, Victoria Arduino has spent more than a century combining Italian design, engineering, and espresso innovation. Known historically for its ornate, Art Nouveau-inspired machines and iconic golden-eagle branding, the company has evolved into a specialty-coffee leader with precision equipment such as the Black Eagle espresso machine and Mythos grinder.

📄 View Technical Sheet

Features

  • Manual Dosing: A single button begins and ends the brewing process.
  • Cool Touch Wands: Significantly reduces wand temperature during steaming.
  • Surface LEDs: Strategically located to help the operator see what they're doing.
  • Reverse Mirror: The back-plate acts as a mirror so the barista can monitor the brewing process.
  • Bar Pump Gauge: Makes it easier to check pressure profiles.
  • AutoSteam Capable: A system that simplifies the milk steaming process.
  • 2 Group, 15.2L heat exchanger boiler, 220V / 3000W (21A, NEMA 6-20)
  • Safety Listings: ETL, NSF, UL
  • Comes with: 2 portafilters (single and double), blank for backflushing, group brush, drain tube, direct connect kit, 1 metal tamper
  • Made in Italy
  • Gold Warranty: 2 Years Parts & Labor

Specifications

Dimensions 22" W x 26" D x 28" H
Weight 150 lbs
Color Chrome
Programmability No
Type of Controls Lever
Watts 3000
Volts 220
Amperage 21
Portafilter Size 58mm
Portafilter Material Stainless Steel
Hot Water Spigot Stainless Steel
Steam Wand 2
Pump Rotary
Boiler Type Heat Exchanger
Boiler Volume 15.2 L Steam
Boiler Material Copper
Reservoir N/A
Water Source Plumbed
Case Material Stainless Steel
Material Steel
Safety Listings UL, NSF, ETL
Warranty 2 Year - Parts & Labor

The Coffeeionado Standard

At Coffeeionado, every machine we offer meets our professional standard — proven reliability, precision engineering, and long-term serviceability. Trusted by professionals since 2016.

24 Month Warranty

$299+ Value - On all commercial machines.

Fast Free Shipping

$399+ Value - We pay your shipping and liftgate fees.

Lifetime Support

Priceless - Get support anytime after your purchase.

SPECIFICATIONS

Height
28 in
Depth
26 in
Width
22 in
Display Type
Analog
Grouphead Type
Lever
Voltage
220-240V
Wattage / Power
3000W
Amperage
14A
Weight
150 lb
Espresso Boiler Capacity
15.2 L
Brew Boiler Capacity
0
Programmability
0 – Manual
Cup Clearance (approx)
5.12 in
Cup Warmer
Passive
Steam Wand Type
Manual articulating stainless steel
Auto Steam
No
Temperature Stability Range
± 1°C
Shot Timer
no
Pressure Profiling
No
Hertz
60 Hz
Time to Thermostability
30-45 minutes

Installation Requirements

Professional installation required in order not to void warranty.

220-240V

Dedicated Outlet

Water Filtration

To Maintain Warranty

Pressure Regulator

Optional, as needed

Water Quality & Machine Protection

Proper water quality is essential for optimal espresso extraction and long-term machine health. Use the guidelines below to ensure your machine performs at its best.

Parameter Ideal Range Why It Matters
Total Hardness 50-170 ppm Prevents scale buildup while maintaining flavor
pH Level 6.5-7.5 Ensures balanced extraction and protects internal components
Chlorine 0 ppm Eliminates off-flavors and prevents corrosion
TDS (Total Dissolved Solids) 70-150 ppm Optimal mineral content for extraction and taste
Total Alkalinity ~7.0 Stabilizes acidity and extraction
Chloride 0-28 ppm Prevents corrosion (especially in steel boilers)

Important Note

Always refer to your machine's manual for specific water quality recommendations and maintenance schedules.

Advisory

Install a water filtration system to maintain consistent water quality and extend the life of your espresso machine.

What This Means

  • Water that’s too hard → scale buildup, reduced performance
  • Water that’s too soft → flat, dull espresso
  • Improper water can damage internal components over time

Machine-Specific Considerations

  • Some machines (especially with stainless steel boilers) require stricter limits on chlorides

Product FAQ

What footprint and counter space does the Victoria Arduino Athena Leva need?

The Victoria Arduino Athena Leva measures 22 in W x 26 in D x 28 in H. Plan the counter with extra room for portafilter handling and service access, and confirm where the drain tray and water connection will sit before delivery.

What type of pump does the Athena Leva use, and how does that affect performance and noise?

The Athena Leva uses a rotary pump, which is standard for commercial machines. Rotary pumps offer stable pressure, support direct plumbing, and are significantly quieter than vibration pumps. This makes the machine better suited for cafés or home baristas who prioritize consistent pressure and lower operating noise.

Does the lever group on the Athena Leva provide pre-infusion, and is it adjustable?

Yes. As a traditional spring-lever machine, the Athena Leva inherently provides mechanical pre-infusion: line pressure soaks the puck before the spring engages to build full pressure. Pre-infusion time is influenced by your line pressure and grind/dose but is not digitally adjustable like on some pump-driven machines.

Are the steam wands on the Athena Leva cool-touch or no-burn, and how powerful is the steam?

The Athena Leva is equipped with commercial-grade steam wands designed for high steam power and fast milk texturing. On most current US configurations they are not fully cool-touch; they will get hot during use, so you should handle them by the rubber grips or handles provided. Always check the specific configuration listed on the product page, as steam wand style can vary by market or production run.

What electrical service does the Victoria Arduino Athena Leva require?

The Victoria Arduino Athena Leva runs on 220 volts (208-240V range), draws 14 amps at 3000 watts, and uses a NEMA 6-20 receptacle on a dedicated circuit. It is a commercial machine, not a household 120V appliance.

What boiler configuration does the Athena Leva use, and can it brew and steam at the same time?

The Athena Leva is a traditional heat-exchanger (HX) commercial machine with a large copper boiler. Each group uses heat-exchanger circuits drawing from the main boiler, which provides ample steam capacity. You can brew espresso and steam milk simultaneously without performance loss in normal use. The large boiler and HX design also help with temperature stability during busy service.

How does the manual lever operation work, and is the Athena Leva suitable for beginners?

To pull a shot on the Athena Leva, you lock in the portafilter, raise the lever to begin pre-infusion, and then carefully release it so the internal spring drives the extraction. Pressure follows a classic lever profile that starts high and tapers off. While it can produce exceptional espresso, a lever machine requires more barista technique, attention to grind and dose, and safe handling of the lever. It is better suited to experienced home users and professional baristas than complete beginners.

Does the Athena Leva have built-in pressure and temperature gauges, and can I adjust brew temperature?

The Athena Leva includes boiler pressure and in many cases pump/line pressure gauges on the front panel, allowing you to monitor system pressure. Boiler temperature is indirectly controlled by an internal pressurestat or PID (depending on configuration) that regulates boiler pressure. You can adjust boiler pressure (and thus brew temperature range) through internal settings, but it is not as straightforward or granular as modern dual-boiler, PID-driven machines with digital displays.

What's Included?

Victoria Arduino Athena Leva

Victoria Arduino Athena Leva

Portfilters

Installation

24 Month Warranty

Lifetime Support

Fast Free Shipping

Discount Exclusions

Discounts may void any installation that is deemed to come "paid" with the purchase.

Shipping to Residential Address

Commercial machines that require installation will need to ship to a commercial address. Residential addresses may incur a fee. Freight companies may not be able to deliver to residential areas. Appointment deliveries can be set up for new builds to ensure delivery.

Site Preparation

Proper placement of electricity, drain holes, and water filtration systems is the responsibility of the customer.

Warning

This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Order With Confidence.

    Every order is handled personally — not processed and forgotten. From the moment you buy, you're working with a team that knows this equipment inside and out.

  • Get Ready for Your Machine.

    After purchase, if installation is included, we will send a quick site checklist so your machine arrives ready to run from day one.

  • Shipped With Care.

    Free shipping on orders over $249, carefully packed and dispatched via UPS or FedEx. Larger commercial equipment ships via freight — coordinated and handled on our end.

  • Start Generating Revenue.

    Once delivered (and installed), your equipment is ready to perform — pulling consistent shots, handling volume, and putting quality coffee in front of every customer.

Frequently Asked Questions

How do I track my order?

You will receive an email upon creation of the shipping label, which means your order is getting ready to be shipped. We continuously send order status updates via email/text.

How much is shipping? Is it free?

How Much Is Shipping? General shipping starts at $15.99. You can qualify for free shipping with any total order value over $249 and shipping to the contiguous USA. Taxes and discounts will be calculated at checkout.

Free Shipping Terms: Typical delivery within 3-6 Business days depending on size of order. Free shipping is available on orders of 199.00 or more to any address in the contiguous United States.

Free shipping does not apply to orders shipping to Alaska, Hawaii, APO/military addresses or on any international orders. We will use the lowest cost means for free shipping. Free shipping delivery dates are best estimates provided by the shipping carrier and are not guaranteed. Orders placed with free shipping are generally processed between 24 - 48 hours after order placement.

What is your return policy?

We offer a 30-day return policy on all unused items in their original packaging. You can read more about our return policy here. Commercial equipment is generally final. Please check before purchasing.

Do you price match?

In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing. Conditions apply, please refer to our Price Match Page for more information.

Do you ship internationally?

Yes, we ship to most countries in the Caribbean. Shipping costs and delivery times vary by location. Warranty is limited to only parts, shipping not included.

Can I return or exchange an item?

We have a 30 exchange/return policy, unless otherwise noted. Please email support@coffeeionado with your name, order #, and reason for exchange. Commercial equipment is generally final. Please check before purchasing.

Do you offer expedited shipping?

Yes. Please reach out for a quote on shipping via text or call at 866-595-0420 or via email at support@coffeeionado.com.

Where do I use my coupon code?

To redeem your discount, enter the coupon code at checkout after you've added items to your cart. You'll see a field labeled "Discount code" or "Coupon code" where you can paste your code before completing your purchase.

Do you ship to PO boxes?

No, we don't ship to PO boxes. Due to the size and weight of our equipment, we require delivery to a physical address where our carriers can safely drop off your order.

How does paid installation work?

We want to make your purchase as smooth as possible and will pay the installation via rebate on commercial espresso machines. This includes commercial machines with more than 1 group head and 220V.

If the certified installer needed is over 1.5 hours away then we will pay for the installation call (and install up to the value suggested on page minus call fee). Travel will be paid by customer. Inquire if you have any questions about your location.


Please note, any discounts subject to void the paid installation offer.

At Coffeeionado, professional installation is included with qualifying espresso machine purchases. Our goal is to make the process as seamless as possible — from coordinating the technician to getting your machine up and running on day one.


Which Machines Qualify

Free professional installation is included with all espresso machines of 2 groups or more where indicated on the product listing. This policy applies to espresso machines only and does not cover other coffee equipment such as grinders, brewers, or accessories.

If you are unsure whether your machine qualifies, contact us before purchasing and we'll confirm.


What's Included

  • Travel and labor costs for installation within the technician's service area (up to 2 hours of travel)
  • Setup, basic programming, and commissioning of the equipment
  • Scheduling during regular business hours, Monday through Friday
  • Associated taxes and fees related to the installation itself

Installation must be completed within 90 days of delivery of the equipment. The installation benefit lapses after this window and cannot be reinstated.


How Installation Is Arranged

Depending on your purchase, installation is handled one of two ways:

Arranged directly — In many cases, Coffeeionado or the manufacturer will coordinate and pay the technician on your behalf. We will contact you after your order is processed to schedule the visit.

Reimbursement — In some cases, you may be asked to arrange the installation locally using an authorized technician and submit a rebate form for reimbursement. Once approved, the covered amount will be refunded to the original payment method used for your order.

We will confirm which arrangement applies to your purchase at the time of order confirmation. If you have questions before purchasing, contact us and we'll walk you through it.


What's Not Included

The following are outside the scope of the installation policy and remain the customer's responsibility:

  • Travel or callout costs beyond the first 2 hours of the technician's travel time — if your location falls outside the local service area, the overage is the customer's responsibility
  • Water filtration systems and installation materials — including plumbing fittings, tubing, plugs, outlets, and any other ancillary components required to prepare the site
  • Electrical or plumbing work — site preparation must be completed before the technician arrives
  • Training on equipment operation — installation covers commissioning only, not barista or operational training
  • False start or callout fees if the technician arrives and the site is not ready for installation

Important: If a technician arrives and cannot complete the installation because the site is unprepared, you will be responsible for any callout or false start fee charged by the technician. However, your installation benefit remains intact — the visit will be rescheduled at no additional cost to your policy.


Water Filtration Requirement

Water filtration must be installed and operational before or at the time of installation. This is not optional — operating a commercial espresso machine without proper filtration will void the manufacturer's warranty. If filtration is not in place at the time of the technician's visit, installation may need to be rescheduled and the callout fee will be the customer's responsibility.

If you need guidance on water filtration requirements for your machine, contact us before scheduling your installation.


Service Area

Installation coverage is tied to the manufacturer's authorized technician service area, generally within a 1.5-hour radius of the nearest certified technician. If the customer's location falls outside this area, Coffeeionado will make reasonable efforts to arrange a local authorized technician, but travel costs beyond the 2-hour coverage limit remain the customer's responsibility.

Not sure if you're in a service area? Contact us before purchasing and we'll check your location.


What to Expect on Install Day

Getting a commercial espresso machine delivered is one thing. Getting it actually running — plumbed, programmed, and pulling properly — is another. Here's what happens when the technician comes out.

Before the appointment: Site preparation will be confirmed before technicians make it out. Once your machine ships, we'll coordinate scheduling with you and assign a local certified technician. Before they arrive, make sure your space is ready: the machine's permanent location should be determined, your water line and drain access should be in place, and your electrical supply should match the machine's requirements.

On the day The technician will handle the physical installation of the machine — positioning, water line connection, and drain setup. Once it's plumbed and powered, they'll run through the setup and basic programming: boiler pressure, shot parameters, and confirming that water flows correctly through the group heads and steam wands. Some basic training will be provided, they'll pull test shots to verify the machine is operating within spec.


After Installation

Once your machine is installed, we'll provide referrals for authorized service technicians in your area for ongoing maintenance and repairs. Coffeeionado offers lifetime support on all equipment we sell — we're here long after the install is done.


Governing Terms

This installation policy forms part of your agreement with Coffeeionado and is subject to our Terms of Sale and Terms of Service. In the event of any conflict, the Terms of Service governs.

Can I pick up the machine at your store?

We do not have a showroom or storefront for customer pickups, so orders cannot be picked up directly from us. That said, there is an exception for La Spaziale and La Pavoni products, you can contact us to arrange.

However, if you'd prefer, we can arrange to have your machine shipped to a local freight terminal/location for pickup instead. Let us know your city/state (or ZIP code), and we’d be happy to check the nearest terminal options for you.
