La Spaziale

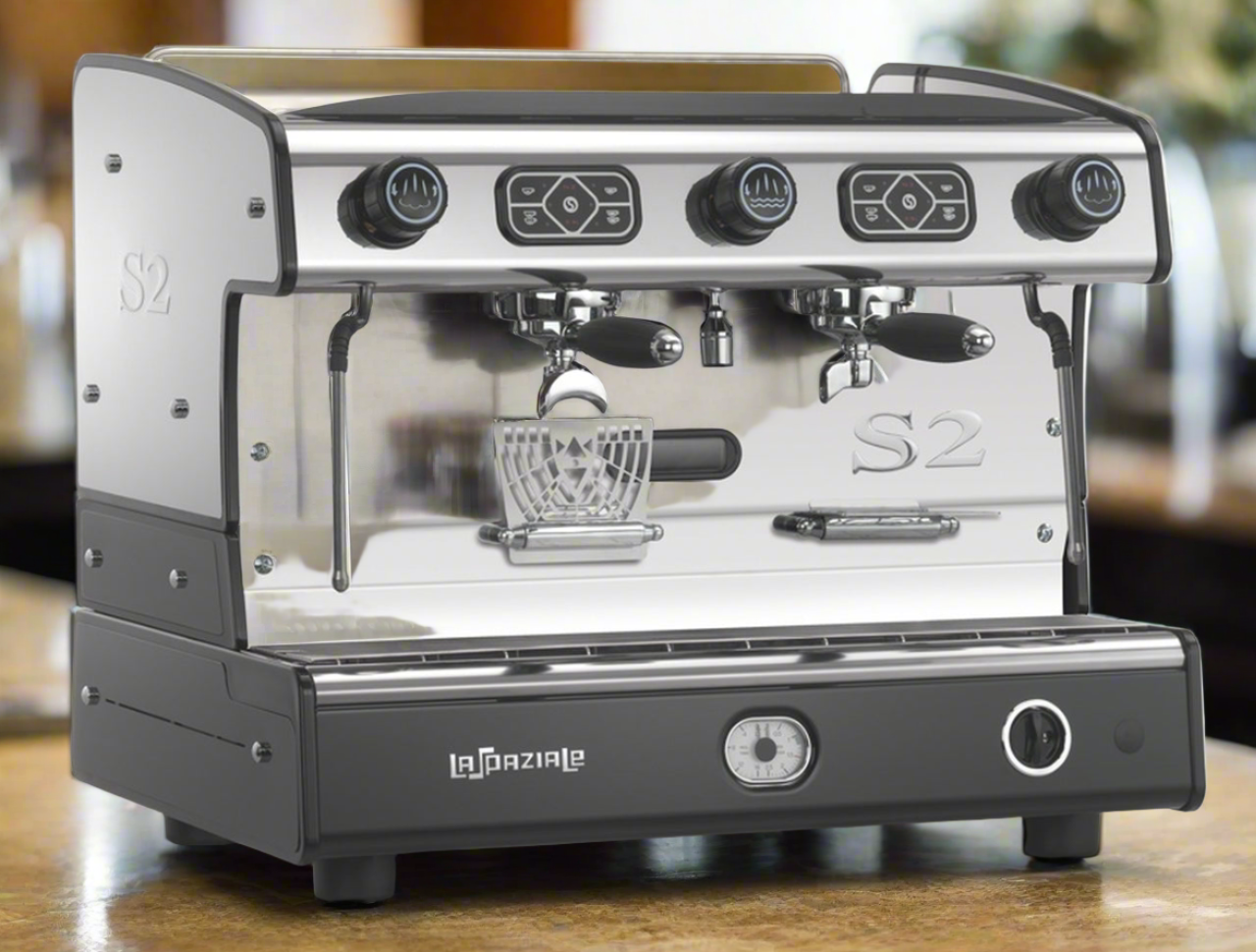

La Spaziale S2 Tall 2 Group Volumetric

La Spaziale S2 Tall 2 Group Volumetric

Save $ 1,485.50
Regular price $ 6,952.50
Regular price $ 8,438.00 Sale price $ 6,952.50
Sale Sold out
  • 2-group volumetric dosing
  • 10 L steam boiler
  • Tall cup clearance

  • Usually ships in 1-2 business days
  • Price Match Available
  • Warranty Included
View full details
  • Experts Since 2016

  • Authorized Dealer

  • Lifetime Support

  • Free Professional Setup

Powering Hundreds of Businesses Including:

A two-group machine with tall cup clearance is built for a specific kind of rush: high-volume drinks served straight into to-go cups without slowing the line. The S2 EK Tall runs on a dedicated 220-240V circuit and a 10-liter heat-exchanger boiler, giving it the thermal mass to brew and steam through sustained service rather than short bursts. Programmable volumetric dosing on both groups means consistency doesn't depend on which barista is on bar. Plan for the dedicated circuit, and this machine handles the volume your tall-cup menu demands.

Product Features

10-Liter Copper Boiler

A 10 liter boiler supplies stable steam and hot water capacity suited to a small café or medium restaurant. Boiler construction in copper and brass helps with heat retention and consistent steaming performance under load.

Compact Footprint

Smaller than its EK cousin, the Spazio maximizes counter space while keeping a workflow designed for service. The large range of motion on the steam arms means two baristas can comfortably work at the same machine during busy periods.

Accurate Volumetric Dosing

Accurate volumetric dosing ensures each shot is the same volume as the next, giving repeatable extraction and predictable drink timing across shifts. That consistency is crucial for speed and quality during peak service.

Tall Cup Clearance

Extra clearance beneath the group heads fits standard to-go cups directly under the portafilter spouts — built for high-volume takeaway service.

53mm Portafilters Included

Machine ships with two double-spouted 53mm portafilters and one single-spouted 53mm portafilter, so you’re set up for both single and double dosing workflows out of the box. The 53mm group size aligns with professional workflow and dosing standards.

ETL & NSF Certified / Direct-Plumb

ETL & NSF approvals plus a 'Reservoir Size: Direct Plumb Only' specification make the Spazio ready for commercial environments and health-code requirements. Direct plumb integration supports continuous service without frequent reservoir refills.

The Coffeeionado Take

Who's It For:

  • New café operators — Volumetric dosing and a 10-liter heat-exchanger boiler deliver consistency and steam capacity for steady two-group service (220-240V circuit required).
  • Restaurant and hospitality coffee programs — Tall cup clearance and volumetric dosing let non-specialist staff produce consistent larger milk drinks during table service rushes
  • Specialty to-go programs — Tall cup clearance is built specifically for brewing straight into 16-20 oz cups without compromising workflow

Right For You If:

  • You have a dedicated 220-240V circuit available — the S2 EK Tall is built for it and there is no 110V option.
  • Your menu features larger milk drinks and you need tall cup clearance to work efficiently with bigger cups and pitchers.
  • Your daily volume is 200–400 drinks and you want the thermal stability of a 10L steam boiler.

Things to Consider:

  • The 10L single boiler covers both brew and steam duty — during sustained peak service across both groups, recovery is something to be mindful of — most operators running steady-but-not-nonstop volume won't notice it.
  • The fixed group design means less flexibility for cleaning and maintenance compared to removable group assemblies.
  • This model requires a dedicated 220-240V circuit rather than standard household power — plan for that during installation, since it's not a swap-in for a 110V setup.

Our Take:

The S2 EK Tall is built for cafés and offices serving a lot of drinks into tall to-go cups — the extra cup clearance and a 10-liter boiler give it the capacity to keep up. It requires a dedicated 220-240V circuit; there's no 110V option on this model. We recommend it for operators with steady volume and the electrical infrastructure for a genuine two-group commercial machine.

Brand

La Spaziale

Usage

Manufacturing

Made in Italy

Certifications

  • ETL, NSF, UL

Brands Seen In

200-400 drinks/day

Target Daily Volume Range for Sustained Use
50% milk based menu

60-100 shots/hr

Target Hourly Output Range

1-2 Baristas

Workflow Set Up

Parts Availablity

1-2 day shipping.
Easy

Your complete buyer's report. In your inbox.

A Coffeeionado Intelligence Report built specifically for this machine. Break-even timeline, maintenance schedule, real resale data, and market feedback. The kind of document you'd expect to pay a consultant for. Enter your email and it's yours.


Key Specifications

BOILER TYPE

Heat Exchanger

WATER SOURCE

Direct-Plumbed

No reservoir

PUMP TYPE

Rotary

Commercial grade, quieter operations

PORTAFILTER

53 mm

OUTPUT

Medium Volume

PRE-INFUSION

Yes

Warranty: 2 Year Warranty - Parts | $299+ Value

This warranty begins from the purchase date and covers parts that are defective due to manufacturer issues. Labor is not included. For international orders outside of the USA, the warranty applies only to parts and does not cover labor or any associated repair costs, nor shipping.

Duration: 24 months from date of purchase

For more information see: Warranty Policy

Why Buy from Coffeeionado

Feature Us Competitors
Free Shipping
Free (Next Day)
Free Installation (220V Machines)
Minimum Commercial Warranty
2 Years (parts)
1 Year
Insured Shipping
Always
Lifetime Support
Extended Warranty Available

Full Product Description

Click to expand

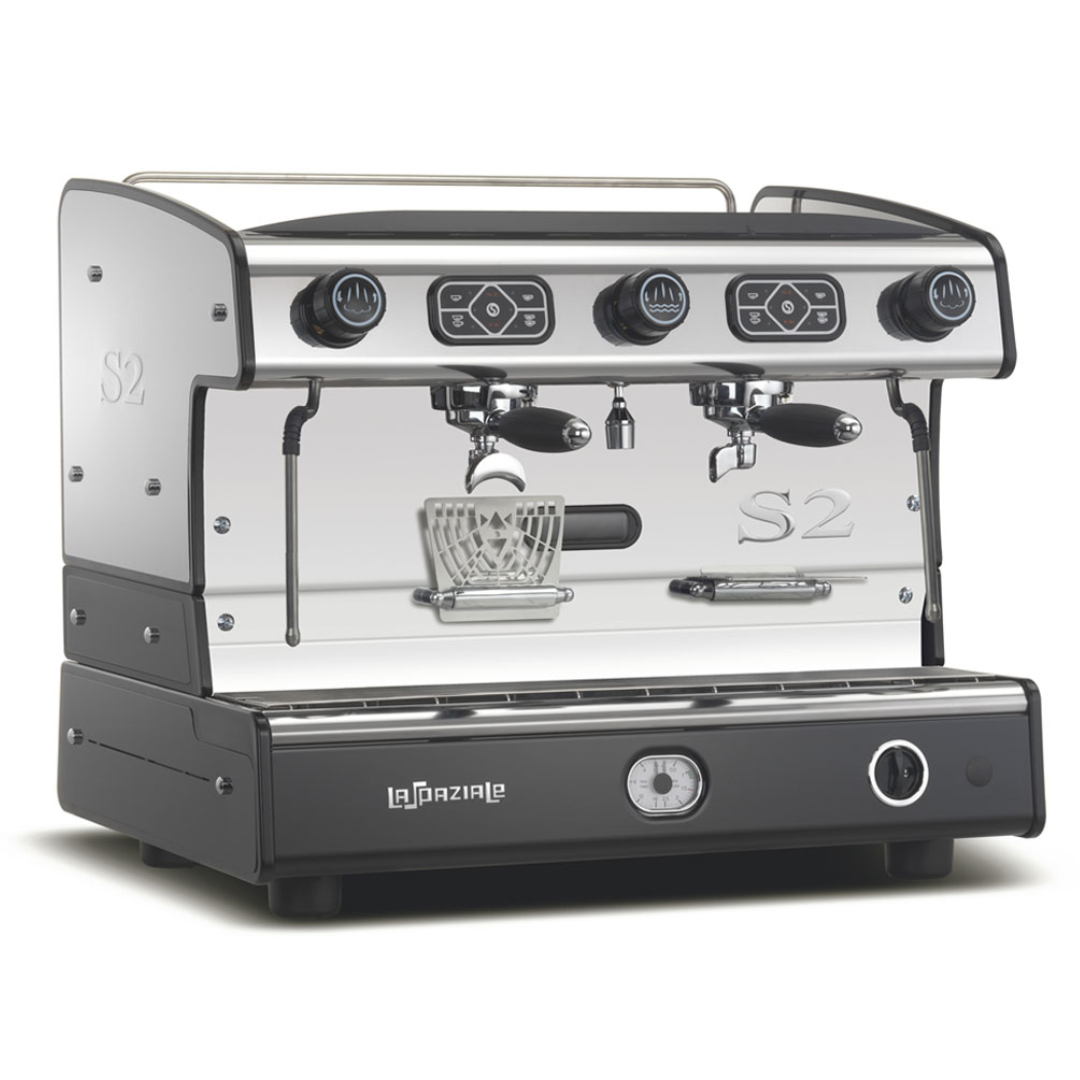

S2 EK 2 Group Tall Cup Espresso Machine by La Spaziale

Produced by Italian espresso machine brand La Spaziale, the S2 EK is manufactured with the highest quality components. The S2 EK Tall Cup allows you to keep emphasis on your coffee without compromising taste or quality.


Paid Installation ($300 Value)

You have enough to worry about, and coordinate, order your commercial espresso with Coffeeionado and we will give you recommendations for installers if you don't have one and pay for your machine installation.

Great for Workflow

The La Spaziale S2 EK is an automatic volumetric machine that allows you to just press a button and the machine will run a programmed dose. This is great for shops that are busy and don't have time to operate a semi-automatic machine (where you have to press a button to stop the shot).

Paid Shipping ($199+ Value)

At Coffeeionado, we understand the frustration of hidden costs when making online purchases. This is why we're thrilled to announce that we now cover all shipping, freight, and handling charges for our premium coffee equipment within the continental USA. Gone are the days of considering additional fees as you add items to your cart.

Programmable Dosing Volume

At the touch of a button you can extract your programmed shot. Let your baristas concentrate on other tasks while the espresso maker automatically pulls your shots. Easily program up to 4 different recipes and there is also a button for manual shots too.

Automatic Espresso Machine

Automatic espresso machines have revolutionized the way baristas operate in coffee shops, allowing them to focus on other tasks while still producing high-quality espressos. With programmable doses, baristas can set specific measurements for each shot of espresso, ensuring consistency and efficiency in the brewing process. This feature not only helps save time but also maintains the quality and flavor of the final product. Meanwhile, they can also focus on other tasks such as taking money, steaming milk, or other work tasks.

Standard Workhorse

This commercial espresso machine features a simple design with the key features expected from one of the most respected and renowned coffee machine manufacturers in the world.

Who is the S2 EK Tall Cup for?

The S2 EK espresso machine would be perfect in medium volume cafe, hotel, restaurant or office. It's primarily built for establishments that offer plenty of takeaway drinks, since you can brew right into the containers. It has all the features you have grown to love in La Spaziale machines and is easy to install and operate. If you have any questions, you can read our espresso machine buyer's guide.

Historic Italian Espresso Machine Brand

La Spaziale is well-known for its top-notch espresso machines. Established in 1969 by experts in espresso machine manufacturing, the company has accumulated five decades of experience in the coffee industry. Headquartered in Bologna, Italy, La Spaziale is recognized as the fifth largest manufacturer of espresso equipment in Italy and holds a significant market share in established espresso markets such as Italy, Spain, France, and Portugal. With a global presence spanning over 70 countries worldwide, La Spaziale's espresso machines are distinguished by their exceptional quality and craftsmanship, incorporating 100% Italian-made components to ensure excellence.

La Spaziale S2 EK 2 Group Tall Cup for Sale at Coffeeionado

Don't miss out on the chance to upgrade your coffee game without breaking the bank. Take advantage of our limited-time offer and get your coffee equipment shipped for free as well as receiving a 12 month warranty on your machine. Get started now and elevate your brewing experience with Coffeeionado!

Have questions or concerns about the S2 EK 2 Group Tall Cup? Let us help. Call, email or chat with a live person here on the website.

Related Materials

📄Download S2 Product Sheet

La Spaziale S2 EK Features

  • Volumetric machine with proportioned dose setting
  • 2 groups
  • Tall cup clearance: 6.25"
  • Electric heating system
  • Pressure gauge for boiler and pump pressure control
  • 1 stainless steel steam wands
  • Hot water outlet
  • Boiler heating element safety thermostat
  • Automatic boiler refill
  • Control of malfunction alarms
  • Stainless steel body
  • Built in rotary pump
  • Safety Certifications: UL/ETL/NSF
  • Made in Italy
  • Will need water filtration for warranty

Specifications

Dimensions 27.5" W x 20.8" D x 23.6" H
Weight 135 lbs
Color Stainless Steel
Programmability 4 programmable buttons + manual
Watts 2300 / 3800
Volts 110
Portafilter Size 53mm
Available Portafilters Non-Pressurized
Cup Size Tall
Hot Water Spigot 1 Stainless Steel
Steam Arms 2 Stainless Steel
Grouphead La Spaziale
Boiler Type Heat Exchange
Boiler Design 5L
Boiler Material Copper & Brass, Nickel Plated
Reservoir None
Drain Tray Plumbed
Pump Built In
Water Source Plumbed
Case Material Stainless Steel
Material Steel
Warranty  2 Year parts

The Coffeeionado Standard

At Coffeeionado, every machine we offer meets our professional standard — proven reliability, precision engineering, and long-term serviceability. Trusted by professionals since 2016.

24 Month Warranty

$299+ Value - On all commercial machines.

Fast Free Shipping

$399+ Value - We pay your shipping and liftgate fees.

Lifetime Support

Priceless - Get support anytime after your purchase.

SPECIFICATIONS

Height
23.6 in
Depth
20.8 in
Width
27.5 in
Display Type
Analog
Grouphead Type
Saturated
Voltage
220-240V
Wattage / Power
3000W / 4600W
Amperage
30A
Weight
135 lb
Espresso Boiler Capacity
10 L
Programmability
4 – Single Short, Double Short, Single Long, Double Long
Programmability Type
Volumetric, Manual
Cup Clearance (approx)
6.25 in
Cup Warmer
Passive
Steam Wand Type
Two stainless steel multi-directional manual steam wands
Auto Steam
Optional
Temperature Stability Range
± 1°C
Shot Timer
no
Pressure Profiling
No
Hertz
60 Hz
Time to Thermostability
45-75 minutes

Installation Requirements

Professional installation required in order not to void warranty.

220-240V

Dedicated Outlet

Water Filtration

To Maintain Warranty

Pressure Regulator

Optional, as needed

Water Quality & Machine Protection

Proper water quality is essential for optimal espresso extraction and long-term machine health. Use the guidelines below to ensure your machine performs at its best.

Parameter Ideal Range Why It Matters
Total Hardness 50-170 ppm Prevents scale buildup while maintaining flavor
pH Level 6.5-7.5 Ensures balanced extraction and protects internal components
Chlorine 0 ppm Eliminates off-flavors and prevents corrosion
TDS (Total Dissolved Solids) 70-150 ppm Optimal mineral content for extraction and taste
Total Alkalinity ~7.0 Stabilizes acidity and extraction
Chloride 0-28 ppm Prevents corrosion (especially in steel boilers)

Important Note

Always refer to your machine's manual for specific water quality recommendations and maintenance schedules.

Advisory

Install a water filtration system to maintain consistent water quality and extend the life of your espresso machine.

What This Means

  • Water that’s too hard → scale buildup, reduced performance
  • Water that’s too soft → flat, dull espresso
  • Improper water can damage internal components over time

Machine-Specific Considerations

  • Some machines (especially with stainless steel boilers) require stricter limits on chlorides

Product FAQ

Is the La Spaziale S2 Tall 2 Group Volumetric a direct‑plumbed machine, or can it use a water reservoir?

The La Spaziale S2 Tall 2 Group Volumetric is designed as a commercial, direct‑plumbed espresso machine. It must be connected to a permanent water line and does not use an internal water reservoir for normal operation.

Does this machine use a rotary pump, and how loud is it during operation?

Yes. The S2 Tall 2 Group Volumetric is equipped with a commercial‑grade rotary pump. Rotary pumps are generally quieter and more consistent than vibration pumps, making the machine suitable for cafés, restaurants, and other commercial environments where lower noise and stable pressure are important.

Does the S2 Tall 2 Group Volumetric offer programmable volumetric dosing for shots?

Yes. Each group head on the S2 Tall 2 Group Volumetric has programmable volumetric controls. You can program shot volumes (for example, single and double espresso) so that the machine automatically stops extraction at the set volume, improving speed and consistency in a busy setting.

Does the ‘Tall’ version allow room for 16–20 oz paper cups or larger to fit under the group heads?

Yes. The ‘Tall’ configuration is specifically designed with extra cup clearance beneath the group heads so that most standard 16–20 oz to‑go cups can fit directly under the portafilter spouts. This is ideal for cafés that serve a high volume of takeaway drinks or larger milk‑based beverages.

Does the La Spaziale S2 Tall 2 Group Volumetric have pre‑infusion, and is it adjustable?

The S2 line includes a pre‑infusion feature designed to gently saturate the coffee puck before full pressure is applied, which can help improve extraction. On many configurations this is managed mechanically rather than as a fully user‑programmable setting, so you typically do not adjust the pre‑infusion time through the front panel as you would on some high‑end machines.

Are the steam wands cool‑touch or ‘no‑burn’, and how many steam wands does the machine have?

The S2 Tall 2 Group Volumetric comes with two stainless‑steel steam wands and one hot‑water tap. Depending on the specific configuration and distributor, the steam wands may be standard or upgraded to cool‑touch (no‑burn) style. Buyers in the U.S. should confirm with the reseller whether the unit being sold includes cool‑touch steam wands or if they are available as an option.

What are the power and electrical requirements for this 2‑group model in the United States?

Most La Spaziale S2 Tall 2 Group Volumetric units sold in the U.S. require a dedicated 220–240 V, 50/60 Hz circuit and draw a higher amperage than household 110–120 V appliances (often in the 20–30 A range, depending on configuration). A dedicated, properly wired commercial circuit is recommended. Always consult the specific machine’s nameplate and your electrician to confirm exact requirements and code compliance.

What size is the boiler on the S2 Tall 2 Group Volumetric, and is it sufficient for busy cafés?

The La Spaziale S2 2‑group Tall model features a single 10‑liter boiler. This higher‑capacity boiler is designed to handle simultaneous brewing and steaming demands common in busy cafés, providing ample steam recovery and hot‑water availability throughout peak service periods.

What's Included?

La Spaziale S2 Tall 2 Group Volumetric

La Spaziale S2 Tall 2 Group Volumetric

Portfilters

Installation

24 Month Warranty

Lifetime Support

Fast Free Shipping

Discount Exclusions

Discounts may void any installation that is deemed to come "paid" with the purchase.

Shipping to Residential Address

Commercial machines that require installation will need to ship to a commercial address. Residential addresses may incur a fee. Freight companies may not be able to deliver to residential areas. Appointment deliveries can be set up for new builds to ensure delivery.

Site Preparation

Proper placement of electricity, drain holes, and water filtration systems is the responsibility of the customer.

Warning

This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Order With Confidence.

    Every order is handled personally — not processed and forgotten. From the moment you buy, you're working with a team that knows this equipment inside and out.

  • Get Ready for Your Machine.

    After purchase, if installation is included, we will send a quick site checklist so your machine arrives ready to run from day one.

  • Shipped With Care.

    Free shipping on orders over $249, carefully packed and dispatched via UPS or FedEx. Larger commercial equipment ships via freight — coordinated and handled on our end.

  • Start Generating Revenue.

    Once delivered (and installed), your equipment is ready to perform — pulling consistent shots, handling volume, and putting quality coffee in front of every customer.

Frequently Asked Questions

How do I track my order?

You will receive an email upon creation of the shipping label, which means your order is getting ready to be shipped. We continuously send order status updates via email/text.

How much is shipping? Is it free?

How Much Is Shipping? General shipping starts at $15.99. You can qualify for free shipping with any total order value over $249 and shipping to the contiguous USA. Taxes and discounts will be calculated at checkout.

Free Shipping Terms: Typical delivery within 3-6 Business days depending on size of order. Free shipping is available on orders of 199.00 or more to any address in the contiguous United States.

Free shipping does not apply to orders shipping to Alaska, Hawaii, APO/military addresses or on any international orders. We will use the lowest cost means for free shipping. Free shipping delivery dates are best estimates provided by the shipping carrier and are not guaranteed. Orders placed with free shipping are generally processed between 24 - 48 hours after order placement.

What is your return policy?

We offer a 30-day return policy on all unused items in their original packaging. You can read more about our return policy here. Commercial equipment is generally final. Please check before purchasing.

Do you price match?

In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing. Conditions apply, please refer to our Price Match Page for more information.

Do you ship internationally?

Yes, we ship to most countries in the Caribbean. Shipping costs and delivery times vary by location. Warranty is limited to only parts, shipping not included.

Can I return or exchange an item?

We have a 30 exchange/return policy, unless otherwise noted. Please email support@coffeeionado with your name, order #, and reason for exchange. Commercial equipment is generally final. Please check before purchasing.

Do you offer expedited shipping?

Yes. Please reach out for a quote on shipping via text or call at 866-595-0420 or via email at support@coffeeionado.com.

Where do I use my coupon code?

To redeem your discount, enter the coupon code at checkout after you've added items to your cart. You'll see a field labeled "Discount code" or "Coupon code" where you can paste your code before completing your purchase.

Do you ship to PO boxes?

No, we don't ship to PO boxes. Due to the size and weight of our equipment, we require delivery to a physical address where our carriers can safely drop off your order.

How does paid installation work?

We want to make your purchase as smooth as possible and will pay the installation via rebate on commercial espresso machines. This includes commercial machines with more than 1 group head and 220V.

If the certified installer needed is over 1.5 hours away then we will pay for the installation call (and install up to the value suggested on page minus call fee). Travel will be paid by customer. Inquire if you have any questions about your location.


Please note, any discounts subject to void the paid installation offer.

At Coffeeionado, professional installation is included with qualifying espresso machine purchases. Our goal is to make the process as seamless as possible — from coordinating the technician to getting your machine up and running on day one.


Which Machines Qualify

Free professional installation is included with all espresso machines of 2 groups or more where indicated on the product listing. This policy applies to espresso machines only and does not cover other coffee equipment such as grinders, brewers, or accessories.

If you are unsure whether your machine qualifies, contact us before purchasing and we'll confirm.


What's Included

  • Travel and labor costs for installation within the technician's service area (up to 2 hours of travel)
  • Setup, basic programming, and commissioning of the equipment
  • Scheduling during regular business hours, Monday through Friday
  • Associated taxes and fees related to the installation itself

Installation must be completed within 30 days of delivery of the equipment. The installation benefit lapses after this window and cannot be reinstated.


How Installation Is Arranged

Depending on your purchase, installation is handled one of two ways:

Arranged directly — In many cases, Coffeeionado or the manufacturer will coordinate and pay the technician on your behalf. We will contact you after your order is processed to schedule the visit.

Reimbursement — In some cases, you may be asked to arrange the installation locally using an authorized technician and submit a rebate form for reimbursement. Once approved, the covered amount will be refunded to the original payment method used for your order.

We will confirm which arrangement applies to your purchase at the time of order confirmation. If you have questions before purchasing, contact us and we'll walk you through it.


What's Not Included

The following are outside the scope of the installation policy and remain the customer's responsibility:

  • Travel or callout costs beyond the first 2 hours of the technician's travel time — if your location falls outside the local service area, the overage is your responsibility
  • Water filtration systems and installation materials — including plumbing fittings, tubing, plugs, outlets, and any other ancillary components required to prepare the site
  • Electrical or plumbing work — site preparation must be completed before the technician arrives
  • Training on equipment operation — installation covers commissioning only, not barista or operational training
  • False start or callout fees if the technician arrives and the site is not ready for installation

Important: If a technician arrives and cannot complete the installation because the site is unprepared, you will be responsible for any callout or false start fee charged by the technician. However, your installation benefit remains intact — the visit will be rescheduled at no additional cost to your policy.


Water Filtration Requirement

Water filtration must be installed and operational before or at the time of installation. This is not optional — operating a commercial espresso machine without proper filtration will void the manufacturer's warranty. If filtration is not in place at the time of the technician's visit, installation may need to be rescheduled and the callout fee will be your responsibility.

If you need guidance on water filtration requirements for your machine, contact us before scheduling your installation.


Service Area

Installation coverage is tied to the manufacturer's authorized technician service area, generally within a 1.5-hour radius of the nearest certified technician. If your location falls outside this area, Coffeeionado will make reasonable efforts to arrange a local authorized technician, but travel costs beyond the 2-hour coverage limit remain your responsibility.

Not sure if you're in a service area? Contact us before purchasing and we'll check your location.


After Installation

Once your machine is installed, we'll provide referrals for authorized service technicians in your area for ongoing maintenance and repairs. Coffeeionado offers lifetime support on all equipment we sell — we're here long after the install is done.


Governing Terms

This installation policy forms part of your agreement with Coffeeionado and is subject to our Terms of Sale and Terms of Service. In the event of any conflict, the Terms of Service governs.

Can I pick up the machine at your store?

We do not have a showroom or storefront for customer pickups, so orders cannot be picked up directly from us. That said, there is an exception for La Spaziale and La Pavoni products, you can contact us to arrange.

However, if you'd prefer, we can arrange to have your machine shipped to a local freight terminal/location for pickup instead. Let us know your city/state (or ZIP code), and we’d be happy to check the nearest terminal options for you.
