La Spaziale

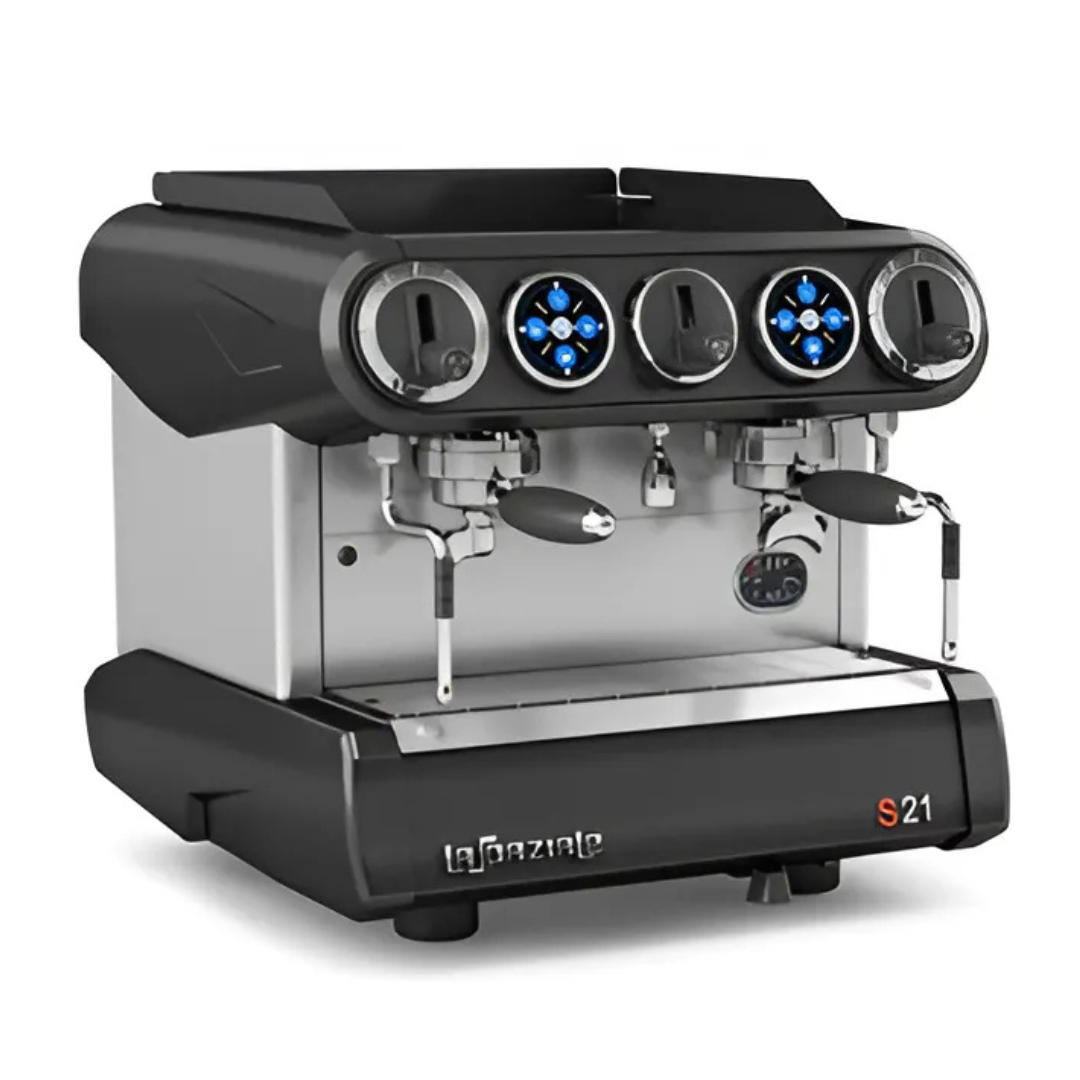

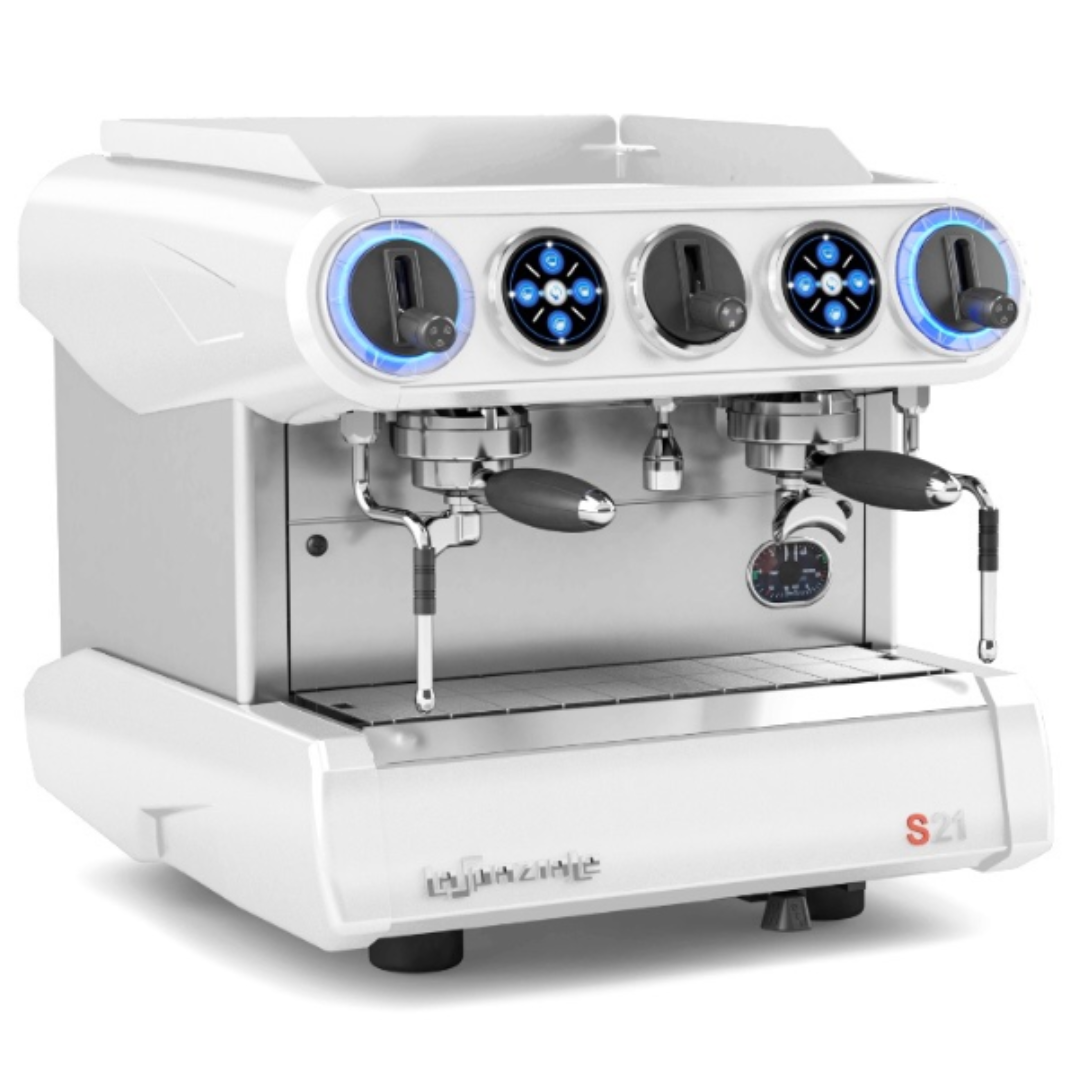

La Spaziale S21 Spazio 2 Group (compact)

La Spaziale S21 Spazio 2 Group (compact)

Save $ 1,316.00
Regular price $ 5,659.00
Regular price $ 6,975.00 Sale price $ 5,659.00
Sale Sold out
  • 2-group compact footprint
  • 5L boiler capacity
  • Programmable volumetric dosing

  • Usually ships in 1-2 business days
  • Price Match Available
  • Warranty Included
View full details
  • Experts Since 2016

  • Authorized Dealer

  • Lifetime Support

  • Free Professional Setup

Powering Hundreds of Businesses Including:

A single group head is a bottleneck you cannot fix with technique once a line starts to form. The S21 Spazio is built for the operator who needs a genuine two-group workflow but works within a compact commercial footprint that doesn't allow for a full-sized chassis. You are keeping the thermal stability of a large electric boiler while reclaiming the counter space necessary to actually run a service. It is a pragmatic solution for high-volume mobile carts or focused bars where every inch of the workspace is expected to earn its keep.

Product Features

Built-In Pump & Pressure Control

Built in pump with pump pressure control provides stable, adjustable extraction pressure under load. Adjustable pump pressure lets baristas and technicians fine-tune extraction for different blends and maintain consistency during heavy service.

Proportioned Dosing

Electronic coffee machine with proportioned dose settings gives repeatable, preprogrammed shot volumes to speed service and reduce shot-to-shot variance. That consistency matters during rush hours when every extraction must hit the same target.

Large Electric Boiler

Electric heating system paired with a 5-liter boiler (2 group) delivers rapid recovery and a steady supply of hot water and steam for consecutive pulls. The boiler capacity keeps output steady during peak periods so temperature and volume aren't compromised.

Boiler Pressure Monitoring

Pressure gauge for boiler gives on-machine feedback of boiler pressure so staff can spot fluctuations and respond quickly. Real-time monitoring aids consistent shot quality and speeds troubleshooting when performance shifts.

Compact Commercial Footprint

Compact commercial dimensions — 27.5 in. wide × 20.9 in. deep × 20.5 in. high for the 2-group — let you fit a high-capacity machine into tighter counters. It’s a practical choice for small cafés or crowded bar stations where space and throughput both matter.

Commercial Materials & Approvals

Coffee boiler constructed from copper, brass and ETL & NSF Approvals ensure the machine meets commercial safety and hygiene standards. Durable boiler materials plus listed certifications support longevity and regulatory compliance in food service environments.

The Coffeeionado Take

Who's It For:

  • New café operators — The 5L boiler, programmable volumetric dosing, and compact footprint deliver professional output in a package that fits most boutique spaces without a full buildout
  • Mobile coffee operations and pop-ups — Compact two-group design with fast heat-up and quick thermal recovery makes it ideal for mobile setups where time and space are both limited
  • Specialty food service — Energy-efficient insulated boiler and selectable standby modes keep operating costs manageable for bakeries and dessert shops running a coffee program as a secondary offering

Right For You If:

  • Your counter space is limited and you need a genuine two-group workflow in a compact chassis.
  • You want fast heat-up and quick thermal recovery so your machine is ready when you are, not the other way around.
  • You have direct plumbing available — this machine is plumbed-in only with no reservoir option.

Things to Consider:

  • This machine requires direct plumbing — there is no reservoir tank option, so you need a cold potable water line with appropriate filtration and pressure regulation already in place.
  • The saturated group with fixed (non-adjustable) pre-infusion means less shot customization compared to machines with adjustable pre-infusion or pressure profiling.

Our Take:

The S21 Spazio compact is one of the best-engineered solutions for operators who need two-group output in a space that was not designed for it — the 5L boiler and energy-efficient design punch above the footprint. We recommend it for boutique cafés and mobile setups where every inch of counter earns its keep.

Brand

La Spaziale

Usage

Manufacturing

Made in Italy

Certifications

  • ETL, NSF, UL

Brands Seen In

100-250 drinks/day

Target Daily Volume Range for Sustained Use
50% milk based menu

40-60 shots/hr

Target Hourly Output Range

1-2 Baristas

Workflow Set Up

Parts Availablity

1-2 day shipping.
Easy

Your complete buyer's report. In your inbox.

A Coffeeionado Intelligence Report built specifically for this machine. Break-even timeline, maintenance schedule, real resale data, and market feedback. The kind of document you'd expect to pay a consultant for. Enter your email and it's yours.


Key Specifications

BOILER TYPE

Heat Exchanger

WATER SOURCE

Direct-Plumbed

No reservoir

PUMP TYPE

Rotary

Commercial grade, quieter operations

PORTAFILTER

53 mm

OUTPUT

Medium Volume

PRE-INFUSION

Mechanical

Warranty: 2 Year Warranty - Parts | $299+ Value

This warranty begins from the purchase date and covers parts that are defective due to manufacturer issues. Labor is not included. For international orders outside of the USA, the warranty applies only to parts and does not cover labor or any associated repair costs, nor shipping.

Duration: 24 months from date of purchase

For more information see: Warranty Policy

Why Buy from Coffeeionado

Feature Us Competitors
Free Shipping
Free (Next Day)
Free Installation (220V Machines)
Minimum Commercial Warranty
2 Years (parts)
1 Year
Insured Shipping
Always
Lifetime Support
Extended Warranty Available

Full Product Description

Click to expand

S21 Spazio 2 Group Compact Espresso Machine by La Spaziale

The La Spaziale S21 Spazio Compact 2 Group brings commercial-grade performance to tight spaces without compromising on quality. Designed for cafes, food trucks, and businesses where every inch counts, this heat-exchange machine delivers consistent espresso shot after shot. With its stainless steel body, programmable dosing, and reliable Italian engineering, the S21 is the perfect blend of form and function — all in a footprint under 22 inches wide

Although this compact espresso machine's boiler is two liters smaller than that of the S2, it can still efficiently cater to the demands of a small cafe or medium restaurant. The Spazio's steam arms offer ample flexibility, allowing two baristas to easily collaborate on this machine despite its smaller build.


Paid Installation ($300 Value)

You have enough to worry about, and coordinate, order your commercial espresso with Coffeeionado and we will give you recommendations for installers if you don't have one and pay for your machine installation.

2 Year Warranty ($199+ Value)

When investing in coffee equipment, peace of mind is worth its weight in gold. This warranty is your guarantee against manufacturer's defects and ensures that all parts are covered for an entire year from the date of purchase. We understand that our customers deserve the very best.

Don't let uncertainty overshadow your love for freshly brewed coffee – take advantage of this limited-time offer and experience unparalleled assurance with your next coffee machine purchase.

Paid Shipping ($299+ Value)

At Coffeeionado, we understand the frustration of hidden costs when making online purchases. This is why we're thrilled to announce that we now cover all shipping, freight, and handling charges for our premium coffee equipment within the continental USA. Gone are the days of considering additional fees as you add items to your cart.

Programmable Dosing Volume

At the touch of a button you can extract your programmed shot. Let your baristas concentrate on other tasks while the espresso maker automatically pulls your shots. Easily program up to 4 different recipes and there is also a button for manual shots too.

Heat Exchange Espresso Machine

The heat exchange espresso machine is designed to provide a consistent and efficient brewing experience. By utilizing a heat exchange system, the machine is able to simultaneously heat water for brewing and produce steam for frothing milk. This ensures that the temperature of the water remains stable throughout the brewing process, resulting in a flavorful and well-extracted shot of espresso.

The heat exchange system also allows for quick and continuous steaming, making it ideal for busy coffee shops or home baristas looking to create lattes and cappuccinos with ease. With its ability to maintain precise temperature control and deliver powerful steam, the heat exchange espresso machine is a valuable tool for producing high-quality coffee beverages.

Volumetric Controls

Volumetric espresso machines with automated features offer a great solution for coffee shops and home users alike. From easy-to-use programmable features, to increased consistency in every cup of espresso, these machines make brewing the perfect cup easier than ever before. When using espresso machines with volumetric pumps, you benefit from their precision. These pumps guarantee accurate water-to-coffee ratios, a key factor in making great espresso.

Automatic Espresso Machine

Automatic espresso machines have revolutionized the way baristas operate in coffee shops, allowing them to focus on other tasks while still producing high-quality espressos. With programmable doses, baristas can set specific measurements for each shot of espresso, ensuring consistency and efficiency in the brewing process. This feature not only helps save time but also maintains the quality and flavor of the final product. Meanwhile, they can also focus on other tasks such as taking money, steaming milk, or other work tasks.

110V Espresso Machine (optional)

This commercial espresso machine features a simple design with the key features expected from one of the most respected and renowned coffee machine manufacturers in the world. It can be operated at 110v or 220v.

Who is the S21 Spazio for?

The S21 Spazio commercial espresso machine would be perfect in small to medium volume cafe, hotel, restaurant or office. Specifically, if you need a 2 group 110v machine or have limited space, then this machine is for you. It has all the features you have grown to love in La Spaziale machines and is easy to install and operate. If you have any questions, please see our espresso machine buyer's guide.

Historic Italian Espresso Machine Brand

La Spaziale is well-known for its top-notch espresso machines. Established in 1969 by experts in espresso machine manufacturing, the company has accumulated five decades of experience in the coffee industry. Headquartered in Bologna, Italy, La Spaziale is recognized as the fifth largest manufacturer of espresso equipment in Italy and holds a significant market share in established espresso markets such as Italy, Spain, France, and Portugal. With a global presence spanning over 70 countries worldwide, La Spaziale's espresso machines are distinguished by their exceptional quality and craftsmanship, incorporating 100% Italian-made components to ensure excellence.

La Spaziale S21 Spazio for Sale at Coffeeionado

Don't miss out on the chance to upgrade your coffee game without breaking the bank. Take advantage of our limited-time offer and get your coffee equipment shipped for free as well as receiving a 12 month warranty on your machine. Get started now and elevate your brewing experience with Coffeeionado!

Have questions or concerns about the S21 Spazio 2 Group? Let us help. Call, email or chat with a live person here on the website.

Related Materials

Download S21 Product Sheet

Product Video


La Spaziale S21 Spazio Features

  • Volumetric machine with proportioned dose setting
  • 2 group
  • Built-in pump
  • Electric heating system
  • LED lights on the side panels(optional)
  • Pressure gauge for boiler and pump pressure control
  • 2 stainless steel steam wands
  • Hot water outlet
  • Electric cup warmer
  • Boiler heating element safety thermostat
  • Automatic boiler refill
  • Control of malfunction alarms
  • Stainless steel body
  • Safety Certifications: UL/ETL/NSF
  • Made in Italy
  • Will need water filtration for warranty

La Spaziale S21 Spazio Specifications

Width 21" (53.3 cm)
Depth 22.5" (57.2 cm)
Height 20.7" (52.6 cm)
Weight 136 lbs (62 kg)
Color Stainless Steel
Programmability 4 programmable buttons + manual
Watts 2300W, 3000W
Volts 115V, 230V
Amperage 20A, 13A
Hertz 60
Portafilter Size 53mm
Available Portafilters Non-Pressurized
Cup Size Traditional
Hot Water Spigot 1 x Stainless Steel
Steam Arms 2 x Stainless Steel
Grouphead La Spaziale
Solenoid Valve Yes
Boiler Type Heat Exchange
Boiler Design 5 L
Boiler Material Copper & Brass, Nickel Plated
Reservoir None
Drain Tray Plumbed
Pump Built In Volumetric
Water Source Plumbed
Case Material Stainless Steel
Material Steel
Warranty 2 Year parts (parts, manufacturer's defects)

The Coffeeionado Standard

At Coffeeionado, every machine we offer meets our professional standard — proven reliability, precision engineering, and long-term serviceability. Trusted by professionals since 2016.

24 Month Warranty

$299+ Value - On all commercial machines.

Fast Free Shipping

$399+ Value - We pay your shipping and liftgate fees.

Lifetime Support

Priceless - Get support anytime after your purchase.

SPECIFICATIONS

Height
20.7 in
Depth
22.4 in
Width
20.9 in
Display Type
Digital
Grouphead Type
Saturated
Voltage
220-240V
Wattage / Power
2300W / 3800W
Amperage
17A
Weight
136.7 lb
Espresso Boiler Capacity
5 L
Programmability
4 – Single Short, Double Short, Single Long, Double Long
Cup Clearance (approx)
5.51 in
Cup Warmer
Passive
Steam Wand Type
Two multi-directional stainless steel steam wands with lever-controlled delivery
Auto Steam
Optional
Temperature Stability Range
± 1°C
Shot Timer
No
Hertz
60 Hz
Time to Thermostability
25-40 minutes

Installation Requirements

Professional installation required in order not to void warranty.

220-240V

Dedicated Outlet

Water Filtration

To Maintain Warranty

Pressure Regulator

Optional, as needed

Water Quality & Machine Protection

Proper water quality is essential for optimal espresso extraction and long-term machine health. Use the guidelines below to ensure your machine performs at its best.

Parameter Ideal Range Why It Matters
Total Hardness 50-170 ppm Prevents scale buildup while maintaining flavor
pH Level 6.5-7.5 Ensures balanced extraction and protects internal components
Chlorine 0 ppm Eliminates off-flavors and prevents corrosion
TDS (Total Dissolved Solids) 70-150 ppm Optimal mineral content for extraction and taste
Total Alkalinity ~7.0 Stabilizes acidity and extraction
Chloride 0-28 ppm Prevents corrosion (especially in steel boilers)

Important Note

Always refer to your machine's manual for specific water quality recommendations and maintenance schedules.

Advisory

Install a water filtration system to maintain consistent water quality and extend the life of your espresso machine.

What This Means

  • Water that’s too hard → scale buildup, reduced performance
  • Water that’s too soft → flat, dull espresso
  • Improper water can damage internal components over time

Machine-Specific Considerations

  • Some machines (especially with stainless steel boilers) require stricter limits on chlorides

Product FAQ

Is the La Spaziale S21 Spazio 2 Group a direct‑plumbed machine, and what type of water connection does it require?

Yes. The La Spaziale S21 Spazio 2 Group (compact) is a direct‑plumb espresso machine that must be connected to a pressurized water line. It typically uses a 3/8" water connection with a recommended incoming pressure of about 25–30 psi and a suitable water filtration/softening system to protect the boiler and internal components.

What type of pump does the S21 Spazio 2 Group use—rotary or vibration?

The S21 Spazio 2 Group uses a commercial rotary pump. Rotary pumps are quieter, more durable, and provide more consistent pressure than vibration pumps, making them ideal for higher‑volume and commercial environments.

Does this machine have programmable volumetric dosing for each group head?

Yes. The S21 Spazio 2 Group is a volumetric machine. Each group head has programmable buttons that allow you to set shot volumes (e.g., single, double) so baristas can start a shot and the machine will automatically stop at the programmed volume for consistency and speed.

Does the La Spaziale S21 Spazio 2 Group offer pre-infusion, and is it adjustable?

The S21 Spazio 2 Group has mechanical pre-infusion built into the saturated group itself — it's fixed and not user-adjustable via a menu. For a fully customizable pre-infusion profile, a higher-end La Spaziale model with electronic programming would be a better fit.

What is the boiler capacity and is it a single boiler or dual boiler system?

The S21 Spazio 2 Group is a heat-exchanger machine with a single 5-liter boiler that serves both brewing and steaming via individual heat-exchanger circuits for each group — sized to give a compact two-group enough steam power and temperature stability for small to medium-volume commercial use.

Are the steam wands cool‑touch or no‑burn, and how many steam wands does the machine have?

The S21 Spazio 2 Group comes with two traditional stainless-steel steam wands (one on each side). These are not cool-touch — the metal gets hot during use, so baristas should use a towel or proper technique when handling them.

What kind of electrical power does the S21 Spazio 2 Group require in the US?

The S21 Spazio 2 Group is available in two electrical configurations: a 115V version (2300W, ~20A) for locations without a 220V line, and a 220-240V version (3800W, 17A) for full commercial output. Confirm which configuration you're ordering — the plug and circuit requirements differ between the two — and verify against the data plate before installation.

What footprint and clearance does the S21 Spazio 2 Group need on a commercial bar counter?

At 20.9"W x 22.4"D x 20.7"H and 136.7 lbs, the S21 Spazio fits a tight commercial bar without sacrificing two-group output. Since it's direct-plumbed, plan for rear access to the water and drain lines and enough clearance behind the machine to service the boiler and pump.

What's Included?

La Spaziale S21 Spazio 2 Group (compact)

La Spaziale S21 Spazio 2 Group (compact)

Portfilters

Installation

24 Month Warranty

Lifetime Support

Fast Free Shipping

Discount Exclusions

Discounts may void any installation that is deemed to come "paid" with the purchase.

Shipping to Residential Address

Commercial machines that require installation will need to ship to a commercial address. Residential addresses may incur a fee. Freight companies may not be able to deliver to residential areas. Appointment deliveries can be set up for new builds to ensure delivery.

Site Preparation

Proper placement of electricity, drain holes, and water filtration systems is the responsibility of the customer.

Warning

This product can expose you to chemicals including lead, which are known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information, go to www.p65warnings.ca.gov.

  • Order With Confidence.

    Every order is handled personally — not processed and forgotten. From the moment you buy, you're working with a team that knows this equipment inside and out.

  • Get Ready for Your Machine.

    After purchase, if installation is included, we will send a quick site checklist so your machine arrives ready to run from day one.

  • Shipped With Care.

    Free shipping on orders over $249, carefully packed and dispatched via UPS or FedEx. Larger commercial equipment ships via freight — coordinated and handled on our end.

  • Start Generating Revenue.

    Once delivered (and installed), your equipment is ready to perform — pulling consistent shots, handling volume, and putting quality coffee in front of every customer.

Frequently Asked Questions

How do I track my order?

You will receive an email upon creation of the shipping label, which means your order is getting ready to be shipped. We continuously send order status updates via email/text.

How much is shipping? Is it free?

How Much Is Shipping? General shipping starts at $15.99. You can qualify for free shipping with any total order value over $249 and shipping to the contiguous USA. Taxes and discounts will be calculated at checkout.

Free Shipping Terms: Typical delivery within 3-6 Business days depending on size of order. Free shipping is available on orders of 199.00 or more to any address in the contiguous United States.

Free shipping does not apply to orders shipping to Alaska, Hawaii, APO/military addresses or on any international orders. We will use the lowest cost means for free shipping. Free shipping delivery dates are best estimates provided by the shipping carrier and are not guaranteed. Orders placed with free shipping are generally processed between 24 - 48 hours after order placement.

What is your return policy?

We offer a 30-day return policy on all unused items in their original packaging. You can read more about our return policy here. Commercial equipment is generally final. Please check before purchasing.

Do you price match?

In the unlikely event that you find your item cheaper at another online store, just let us know and we'll beat the competitor's pricing. Conditions apply, please refer to our Price Match Page for more information.

Do you ship internationally?

Yes, we ship to most countries in the Caribbean. Shipping costs and delivery times vary by location. Warranty is limited to only parts, shipping not included.

Can I return or exchange an item?

We have a 30 exchange/return policy, unless otherwise noted. Please email support@coffeeionado with your name, order #, and reason for exchange. Commercial equipment is generally final. Please check before purchasing.

Do you offer expedited shipping?

Yes. Please reach out for a quote on shipping via text or call at 866-595-0420 or via email at support@coffeeionado.com.

Where do I use my coupon code?

To redeem your discount, enter the coupon code at checkout after you've added items to your cart. You'll see a field labeled "Discount code" or "Coupon code" where you can paste your code before completing your purchase.

Do you ship to PO boxes?

No, we don't ship to PO boxes. Due to the size and weight of our equipment, we require delivery to a physical address where our carriers can safely drop off your order.

How does paid installation work?

We want to make your purchase as smooth as possible and will pay the installation via rebate on commercial espresso machines. This includes commercial machines with more than 1 group head and 220V.

If the certified installer needed is over 1.5 hours away then we will pay for the installation call (and install up to the value suggested on page minus call fee). Travel will be paid by customer. Inquire if you have any questions about your location.


Please note, any discounts subject to void the paid installation offer.

At Coffeeionado, professional installation is included with qualifying espresso machine purchases. Our goal is to make the process as seamless as possible — from coordinating the technician to getting your machine up and running on day one.


Which Machines Qualify

Free professional installation is included with all espresso machines of 2 groups or more where indicated on the product listing. This policy applies to espresso machines only and does not cover other coffee equipment such as grinders, brewers, or accessories.

If you are unsure whether your machine qualifies, contact us before purchasing and we'll confirm.


What's Included

  • Travel and labor costs for installation within the technician's service area (up to 2 hours of travel)
  • Setup, basic programming, and commissioning of the equipment
  • Scheduling during regular business hours, Monday through Friday
  • Associated taxes and fees related to the installation itself

Installation must be completed within 30 days of delivery of the equipment. The installation benefit lapses after this window and cannot be reinstated.


How Installation Is Arranged

Depending on your purchase, installation is handled one of two ways:

Arranged directly — In many cases, Coffeeionado or the manufacturer will coordinate and pay the technician on your behalf. We will contact you after your order is processed to schedule the visit.

Reimbursement — In some cases, you may be asked to arrange the installation locally using an authorized technician and submit a rebate form for reimbursement. Once approved, the covered amount will be refunded to the original payment method used for your order.

We will confirm which arrangement applies to your purchase at the time of order confirmation. If you have questions before purchasing, contact us and we'll walk you through it.


What's Not Included

The following are outside the scope of the installation policy and remain the customer's responsibility:

  • Travel or callout costs beyond the first 2 hours of the technician's travel time — if your location falls outside the local service area, the overage is your responsibility
  • Water filtration systems and installation materials — including plumbing fittings, tubing, plugs, outlets, and any other ancillary components required to prepare the site
  • Electrical or plumbing work — site preparation must be completed before the technician arrives
  • Training on equipment operation — installation covers commissioning only, not barista or operational training
  • False start or callout fees if the technician arrives and the site is not ready for installation

Important: If a technician arrives and cannot complete the installation because the site is unprepared, you will be responsible for any callout or false start fee charged by the technician. However, your installation benefit remains intact — the visit will be rescheduled at no additional cost to your policy.


Water Filtration Requirement

Water filtration must be installed and operational before or at the time of installation. This is not optional — operating a commercial espresso machine without proper filtration will void the manufacturer's warranty. If filtration is not in place at the time of the technician's visit, installation may need to be rescheduled and the callout fee will be your responsibility.

If you need guidance on water filtration requirements for your machine, contact us before scheduling your installation.


Service Area

Installation coverage is tied to the manufacturer's authorized technician service area, generally within a 1.5-hour radius of the nearest certified technician. If your location falls outside this area, Coffeeionado will make reasonable efforts to arrange a local authorized technician, but travel costs beyond the 2-hour coverage limit remain your responsibility.

Not sure if you're in a service area? Contact us before purchasing and we'll check your location.


After Installation

Once your machine is installed, we'll provide referrals for authorized service technicians in your area for ongoing maintenance and repairs. Coffeeionado offers lifetime support on all equipment we sell — we're here long after the install is done.


Governing Terms

This installation policy forms part of your agreement with Coffeeionado and is subject to our Terms of Sale and Terms of Service. In the event of any conflict, the Terms of Service governs.

Can I pick up the machine at your store?

We do not have a showroom or storefront for customer pickups, so orders cannot be picked up directly from us. That said, there is an exception for La Spaziale and La Pavoni products, you can contact us to arrange.

However, if you'd prefer, we can arrange to have your machine shipped to a local freight terminal/location for pickup instead. Let us know your city/state (or ZIP code), and we’d be happy to check the nearest terminal options for you.
